AMI Helios Series
Applied Membranes, Inc. Helios Series Ultraviolet Water Treatment Systems Provide Proven Microbiological Control Solutions in Water Applications up to 21 gpm.
Applied Membranes Helios series ultraviolet water treatment systems UV technology is proven to control microbiological (bacteria & virus) issues in water including E.coli, Cryptosporidium and Giardia lamblia. Designed for easy, do-it-yourself installation, Applied Membranes Helios Series systems can be installed on a single tap (point of use), or at the point-of-entry to treat all the water coming into the home.
Solapur Helios Series UV System Specifications and Ordering Information
| Model No. |
Recommeded Flow Rate (@ 30 mJ/cm2) |
In/Out Port |
Lamp Watts |
Power Watts | Reactor Dimensions (Dia. x Length) |
Flow @ 16 mJ/cm2 (US Public Health Standard) |
Flow @ 40 mJ/cm2 |
|
|
gpm |
lpm |
|||||||
| UV-SPH-2 | 2 | 7.6 | 1/2″ FNPT | 8 | 14 | 2.5″ x 10.3″ (6.4 x 26.2 cm) |
4 gpm (15 lpm) |
1.6 gpm (6.1 lpm) |
| UV-SPH-3 | 3.1 | 11 | 1/2″ MNPT | 15 | 20 | 2.5″ x 14.3″ (6.4 x 36.3 cm) |
6.1 gpm (23 lpm) |
2.4 gpm (9.1 lpm) |
| UV-SPH-6 | 5.8 | 23 | 3/4″ MNPT | 22 | 30 | 2.5″ x 21.3″ (6.4 x 54.1 cm) |
11 gpm (41 lpm) |
4.4 gpm (17 lpm) |
| UV-SPH-11 | 11 | 41 | 3/4″ MNPT | 39 | 49 | 2.5″ x 35.2″ (6.4 x 89.4 cm) |
20 gpm (77 lpm) |
8.3 gpm (31 lpm) |
| UV-SPH-15 | 15 | 57 | 1″ MNPT | 50 | 62 | 2.5″ x 40.0″ (6.4 x 101.6 cm) |
30 gpm (110 lpm) |
12 gpm (45 lpm) |
| UV-SPH-21 | 21 | 79 | 1″ MNPT | 42 | 51 | 3.5″ x 36.1″ (8.9 x 91.7 cm) |
39 gpm (150 lpm) |
16 gpm (59 lpm) |
Additional Specifications:
- Chamber Material: 304 Stainless Steel, 1249 Pressure Rated Tubing, Polished & Passivated
- Controller Dimensions: 6.8″ x 3.6″ x 3″ (171.5 mm x 92.1 mm x 76.2 mm)
- Maximum Operating Pressure: 150 psi (10 bar)
- Operating Temperature Range: 36-104°F (2-40°C)
- Lamp Change Reminder: Audible & Visual – with 4-Digit LED Display.
- Equipped with Lamp-Out Indicator (Audible and Visual)
- Electrical: 90-265v/60-Hz
- Models shown above are equipped with USA American Nema 5/15 electric plug. To order in alternative voltages, please add the appropriate voltage code to the end of the part number. (Example: UV-SPH-2-EU)
- EU: European: CEE 7/7
- UK: British Standard: BS 1363
- AU: Australian/New Zealand: AS/NZ 3112
- Flow rates for a given dose are calculated based on system output at end of lamp life in water with 95% UVT.

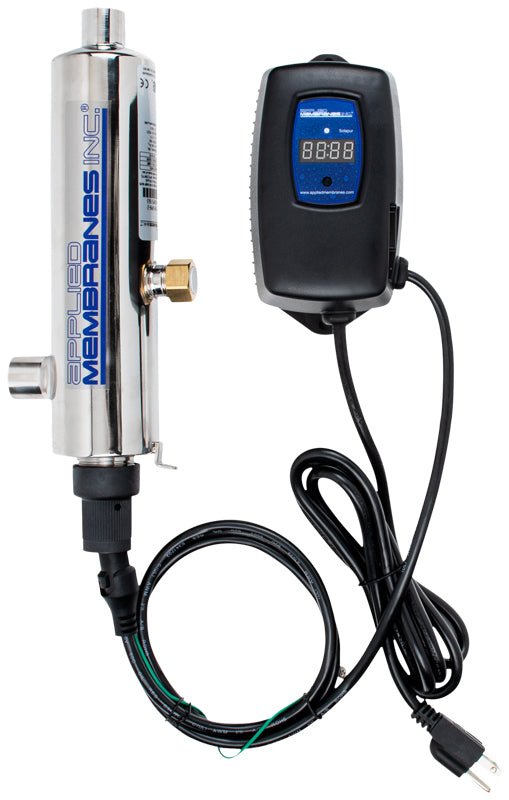

UV-SPH-2 |

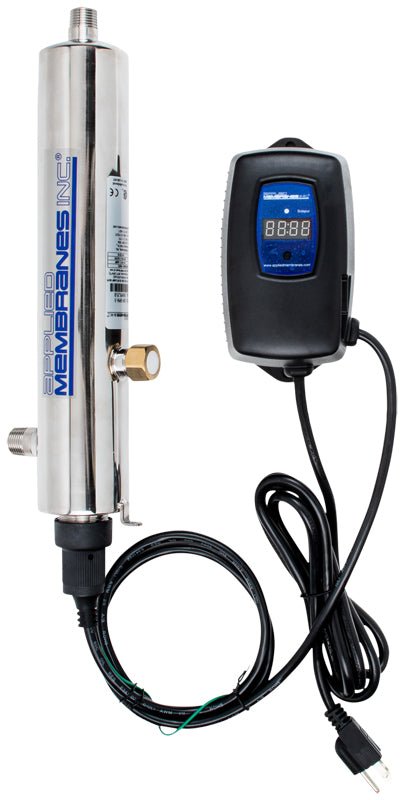

UV-SPH-3 |

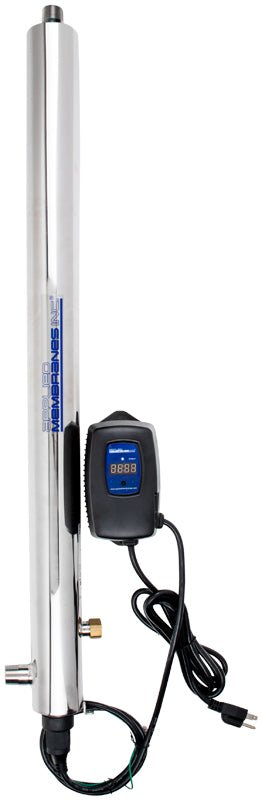

UV-SPH-11 |

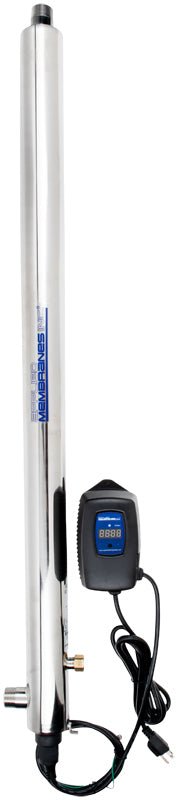

UV-SPH-15 |
Solapur Helios Series Ultraviolet Systems Benefits
- A chemical-free way to safeguard your water using no additives
- 99.99% destruction of bacteria, virus and protozoan cysts (Giardia Lamblia and Cryptosporidium) at rated flow.
- No harmful chemical additives – no added taste or odors.
- Environmentally friendly, cost effective, and energy efficient
- No disinfection by-products (DBP’s) or residuals
- No resistance as with chlorine and antibiotics
- No regrowth of viruses, bacteria and parasites
- Easy to install and service – simply change the bulb once per year.
- No moving parts to wear out or break
- Compact, streamline design takes minimal space.
- Audible and Visual Lamp Change Reminder and Lamp Fail Alarm to ensure the safety of your water.
Applied Membranes Solapur UV System Features
- Built-in UV Lamp Countdown Timer and Total Elapsed Running Time Readouts with a 4-Digit LED Display
- Visual Sight Port for “Lamp-On” Verification
- Audible and Visual Lamp Change Reminders and Failure Indicators
- Sturdy 304 Stainless Steel Reactor Chamber
- Bayonet-Style Lamp Connector for Easy, No-Tools Change-Out
- Constant Current Electronic Controller in a Splash-Proof Case
- Fully Potted Ballast Virtually Eliminates Common Water Damage Issues

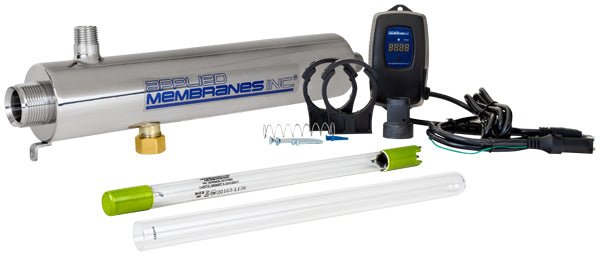

- System is Sold Complete with UV Chamber, Lamp, Sleeve, Controller, Power Supply, Mounting Clamps, and Installation & Maintenance Manual.
Common Applications for Solapur Helios Series Ultraviolet Systems
Whether you are unsure of the microbiological quality of your source water or, if you are looking for additional security from your municipal water source, Applied Membranes Solapur Ultraviolet Water Disinfection systems can provide the coverage you need. Our Solapur Helios Series provide proven microbiological control solutions in virtually any application up to 21 gpm.
Solapur Helios Series are suitable for point-of-use and point-of-entry installation to supply clean, straight water straight to a single tap, a whole home or building, or for commercial use including:
- Homes, Condos, Cottages
- Offices
- Public Buildings
- Restaurants
- Schools & Daycares
- Eldercare & Healthcare Facilities
- Dental Practices
- Cottages
- Camps
- RVs
- Boats
- Rainwater
- Dairy & Livestock
- Manufacturing
- Other Commercial Uses
Replacement Lamps & Quartz Sleeve for Solapur Helios Series UV Systems
| UV System Model |
Replacement Lamp |
Replacement Quartz Sleeve |
Replacement Lamp & Sleeve Combo-Pack |
| UV-SPH-2 | UV-SPH-2-L | UV-SPH-2SLV | UV-SPH-2-LSP |
| UV-SPH-3 | UV-SPH-3-L | UV-SPH-3SLV | UV-SPH-3-LSP |
| UV-SPH-6 | UV-SPH-6-L | UV-SPH-6SLV | UV-SPH-6-LSP |
| UV-SPH-11 | UV-SPH-11-L | UV-SPH-11SLV | UV-SPH-11-LSP |
| UV-SPH-15 | UV-SPH-15-L | UV-SPH-15SLV | UV-SPH-15-LSP |
| UV-SPH-21 | UV-SPH-21-L | UV-SPH-21SLV | UV-SPH-21-LSP |
Replacement Controllers & Power Supplies for Solapur Helios Series UV Systems
| Controlller Model |
Voltage |
Replacement Power Supply (Sold Separate) |
|
| UV-CH-US | North American NEMA 5-15 (110V./50-60Hz) | UV-CH-US |  |
| UV-CH-EU | European CEE 7/7 (230V./50-60Hz) | UV-CH-EU | |
| UV-CH-UK | British BS 1363 (230V./50-60Hz) | UV-CH-UK | |
| UV-CH-AU | Australian AS/NZS 3112 (230V./50-60Hz) | UV-CH-AU |
