Hospital Supply Room Pure Water System

Get Free Quote

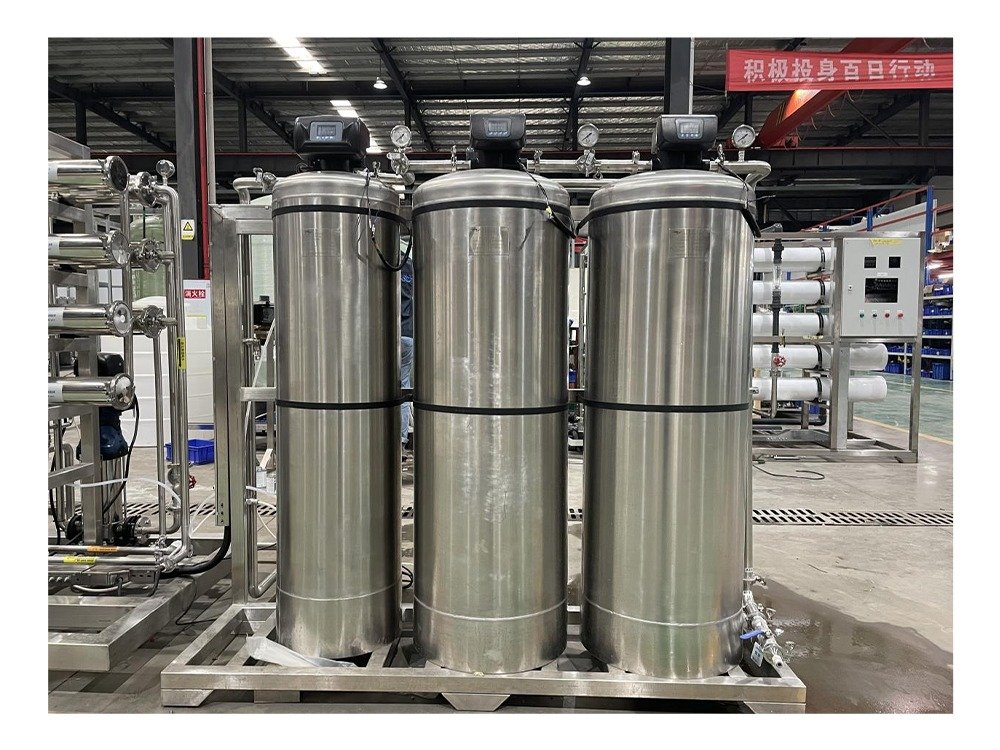

  • Pretreatment filters: It adopts multimedia filter, activated carbon filter and water softener to filter out the large particles, residual chlorine, organic matters and inlet water hardness to ensure the stable operation of subsequent processing.
  • ‌RO system: Using a high-pressure pump to drive water molecules to penetrate the reverse osmosis membrane, intercepting inorganic salts, heavy metals, and microorganisms, and producing water with a purity of conductivity<2.0 μ S/cm‌
  • EDI water purification system: Featuring optional EDI desalination for further removal of residual ions via electrodeionization technology, achieving ultrapure water (resistivity ≥ 15M Ω· cm)
  • Storage, delivery and disinfection device: equipped with ultraviolet (UV) sterilizer and ozone disinfection, paired with micro filter to eliminate the risk of microbial contamination
Facebook X-twitter Youtube Whatsapp

working flow of Pure Water System

  • Raw water
  • booster pump
  • multi-media filter
  • activated carbon filter
  • softener filter
  • precision filtration
  • 1st RO system
  • 2nd RO system /EDI
  • pure water tank
  • UV sterilization
  • micro filtration
  • water point

Technical Specification

ProductHospital supply room pure water system
Capacity250L/H-10000L/H
Source waterTap water
Produce water qualityComplies with the Acceptance Standards for Hospital Disinfection Supply Room and the Management Guidelines for Disinfection Supply Center, with a total bacterial count of ≤ 10CFU/100mL and endotoxins of ≤ 0.25EU/mL‌
Desalination rate99%
Power supplyCustomized

Models Of Pure Water System

ModelCapacity
MOLDSC-50S50L/H
MOLDSC-100S100L/H
MOLDSC-150S150L/H
MOLDSC-200S200L/H
MOLDSC-250S250L/H
MOLDSC-500S500L/H
MOLDSC-750S750L/H
MOLDSC-1000S1000L/H
MOLDSC-1500S1500L/H
MOLDSC-2000S2000L/H

Applications of Pure Water System

  • Provide sterile pure water for cleaning machines, steam sterilizers, and ultrasonic cleaning machines to avoid residual scale or microorganisms during instrument cleaning
  • End rinse surgical instruments, endoscopes, and other highly dangerous items to ensure sterilization effectiveness

Advantages of Pure Water System

01

Fully automatic microcomputer operation, real-time online monitoring of conductivity, pressure, and flow rate, automatic alarm and shutdown for exceeding standards

02

Equipped with remote monitoring module to achieve unmanned operation of equipment

03

Made of stainless steel 304 material, with integrated or split design, the equipment is beautiful and durable

04

Equipped with multiple safety mechanisms such as automatic protection and alarm functions, power on self-test, water shortage protection alarm, high and low voltage automatic shutdown protection, etc., to extend the service life of the equipment

05

Adopting imported reverse osmosis membranes with high desalination rate, low energy consumption, and anti pollution, the water quality of the produced water is stable

06

Automatic flushing of reverse osmosis membrane upon startup, extending the service life of reverse osmosis membrane
