Vessel Accessories
Equipment for Mounting Membrane Housing Pressure Vessels
Click-Lock Clamps, Straps, Unistrut Clamps, Support Saddles and other hardware are used to install pressure vessels and ensure secure pressure vessel installation and support in a water treatment system.
Mounting Clamps for PVC 4” Pressure Vessels
| Model No. | Description | Image | |

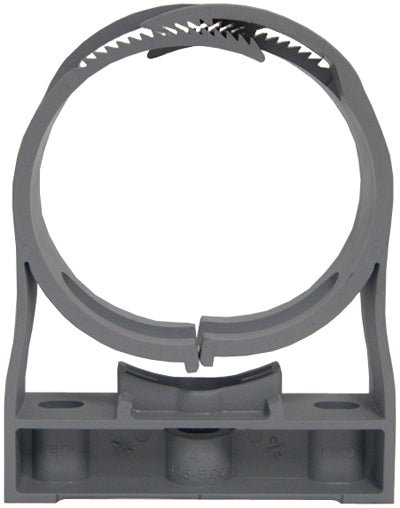

| 1949.040 | Click-Lock Style Mounting Click Clamps #113 for 4” Dia. Vessel |  |
 |

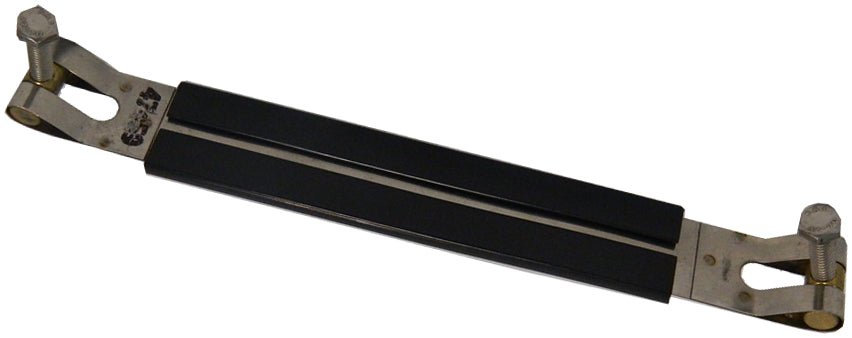

| PV-STPVC40 | Mounting Strap for 4” Dia. Pressure Vessel | ||

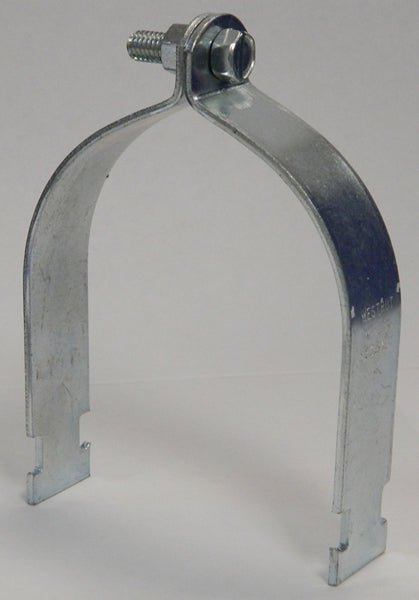

| YCUP400 | Unistrut Clamp with bolt for 4” Dia. Vessels, Plated Metal (Requires Channel Iron listed below) |
 |
|
| YCUF400 | Unistrut Clamp with bolt for 4” Dia. Vessels, FRP (Requires Channel Iron listed below) |
||
Mounting Clamps for Stainless Steel 2”, 2.5” & 4” Pressure Vessels
| Model No. | Description | Image | |
| 1949.005 | Click-Lock Style Mounting Click Clamps #20 for ½” Dia. Pressure Vessel |  |
 |
| 1949.007 | Click-Lock Style Mounting Click Clamps #25 for ¾” Dia. Pressure Vessel | ||
| 1949.010 | Click-Lock Style Mounting Click Clamps #32 for ½” Dia. Pressure Vessel | ||
| 1945.015 | Click-Lock Style Mounting Click Clamps #47 for 1 ½” Dia. Pressure Vessel | ||
| 1949.020 | Click-Lock Style Mounting Click Clamps #59 for 2” Dia. Pressure Vessel | ||
| 1949.025 | Click-Lock Style Mounting Click Clamps #71 for 2 ½” Dia. Pressure Vessel | ||

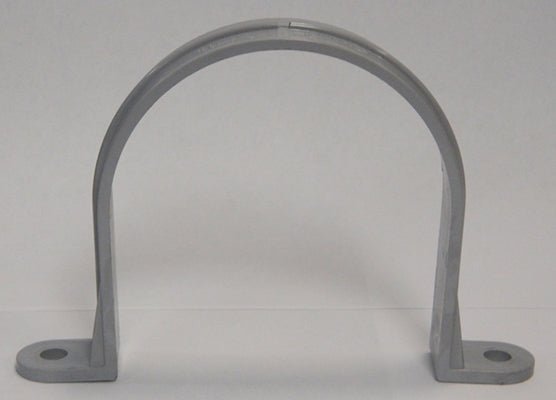

| PV-ST40A-SS | Mounting Strap for 4” Dia. Vessel |  |
|
| YCUP218-OD | Unistrut Clamp with bolt for 2” Dia. SS, Plated Material | ||
| YCUP258-OD | Unistrut Clamp with bolt for 2.5” Dia. SS, Plated Material | ||
| YCUP418-OD | Unistrut Clamp with bolt for 4” Dia. SS, Plated Material | ||
Mounting Straps and Saddle Pads for FRP 4” and 8” Pressure Vessels
| Model No. | Description | Image |
| 4040037 | Saddle for All 4” Dia. SS, FRP or PVS Vessel, 1 each (Replaces AMI # PV-SA40AEA) Manufacturer: Protec |
 |
| 4040040 | Strap Assembly for 4” Protec Housings (Universal) | |
| 4080173 | Support Saddle (1 pc.) for 8” 150/300psi Protec Housings | |
| 4080174 | Support Saddle (1 pc.) for 8” 450/600psi Protec Housings | |
| 4080175 | Support Saddle (1 pc.) for 8” 1000/1200psi Protec Housings | |
| 4080137 | Strap Assembly for 8” Protec Housings (Universal) |  |
| 6150001 | Screw for straps for 4” & 8” Protec Housings | |
| 47459 | Strap/Each for 4” CodeLine Housings (Universal) | |
| 45058 | Saddle/Each for 4” CodeLine Housings (Universal) | |
| 52169 | Saddle/Each for 8” CodeLine Housings (Universal) | |
| 45042 | Strap/Each for 8” CodeLine Housings (Universal) | |
| 46265 | Screw for straps for 8” CodeLine Housings |
Membrane Extraction Tools and Channel Iron
| Model No. | Description | Image |

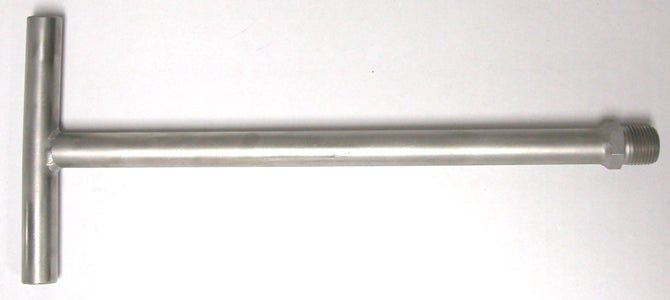

| PV-EXT14 | End Plug Extractor Tool for 1/4” NPT thread |  |
| PV-EXT38 | End Plug Extractor Tool for 3/8” NPT thread |
Benefits of Pressure Vessel Mounting Equipment
- Avoid damage to the vessels due to improper support which could result in leaks or bursting.
- Aids in vessel installation and system assembly.
- Available in a variety of styles for use in various mounting methods.
Features of Pressure Vessel Mounting Equipment
- Variety of styles to suit various mounting methods.
- Available for pressure vessels 2” to 8” Diameter including housings of PVC, Stainless Steel, and FRP Construction
Applications for Pressure Vessel Mounting Equipment
- Reverse Osmosis Systems
- Ultrafiltration Systems
- Nanofiltration Systems
- Seawater Desalination
- Brackish Water
- Tap Water
- Groundwater
- Municipal
- Potable Water
- Water Treatment for Commercial and Industrial Use
