WFI storage and distribution system is a critical component of any WFI system in the pharmaceutical industry, it ensures consistent delivery of water that meets strict standards for flow, pressure, temperature, and microbial control.
As a trusted water for injection system manufacturer, All Refine delivers reliable WFI generation plants, WFI water systems, and WFI equipment tailored for safe and compliant use in the pharmaceutical industry.

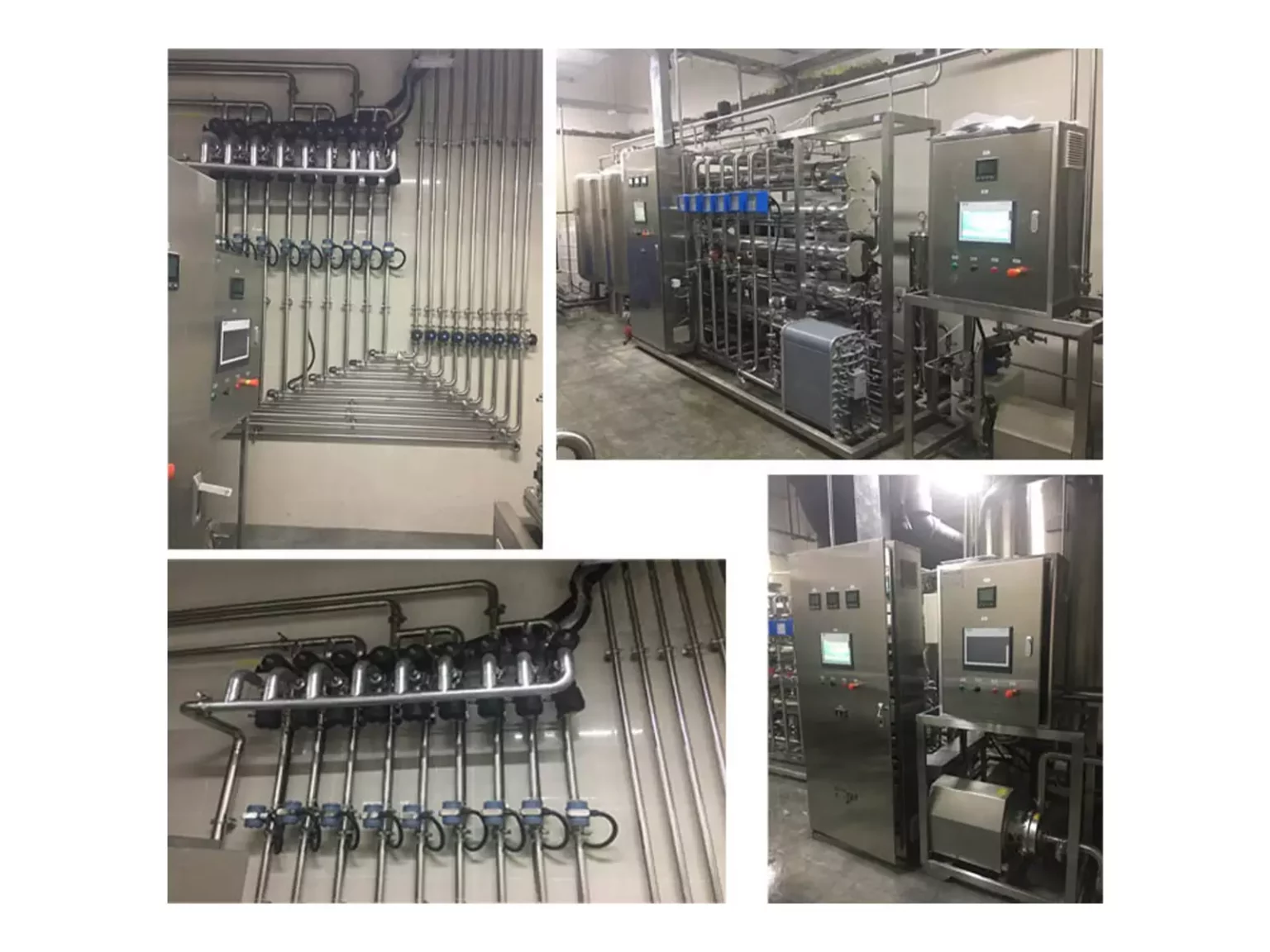

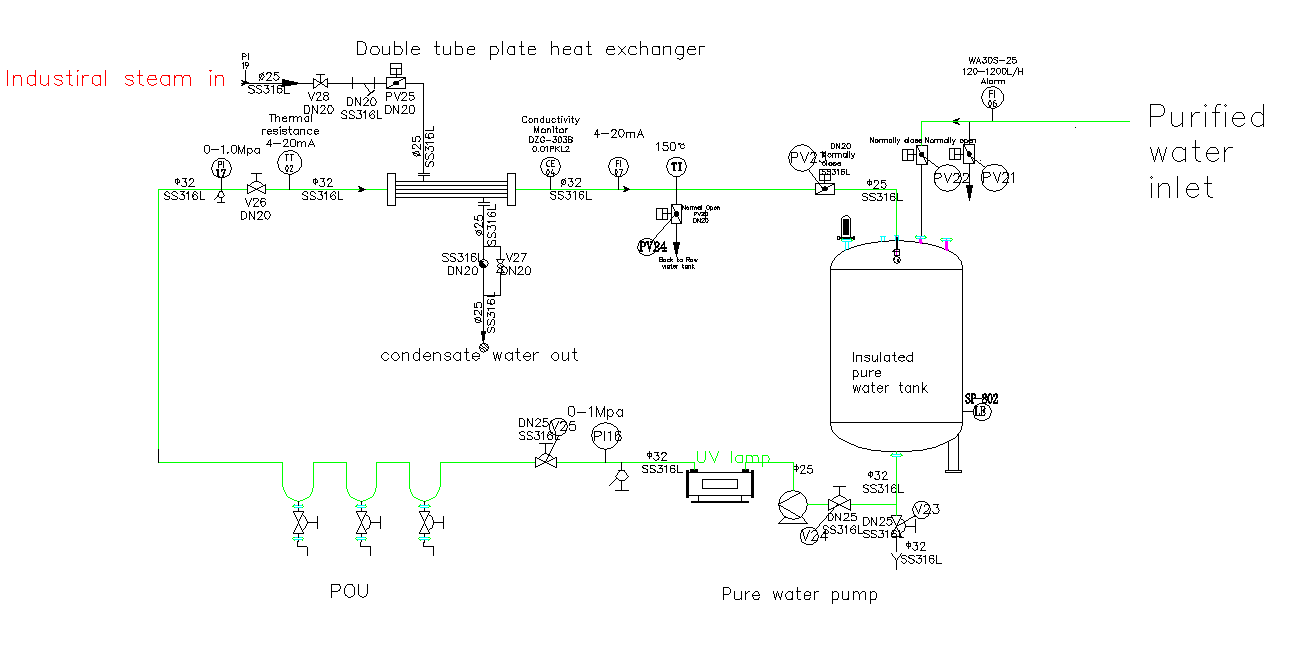

The system includes a storage tank, distribution pump, UV lamp, heat exchanger, point-of-use (POU) outlets, sampling and diaphragm valves, and a sanitary loop pipeline. These elements are essential for maintaining the performance and reliability of the WFI water plant and purified water systems.
Integrated instruments continuously monitor flow, pressure, temperature, conductivity, and TOC. Real-time data supports trend analysis, enhances safety, and enables precise quality control of the WFI distribution system. Microorganisms are effectively controlled through pasteurization or ozone sterilization
The piping design no dead legs and low-flow zones, with proper slopes following the 3D rule for complete drainage. Return water is also monitored online for critical parameters (temperature, conductivity, pressure and flow).

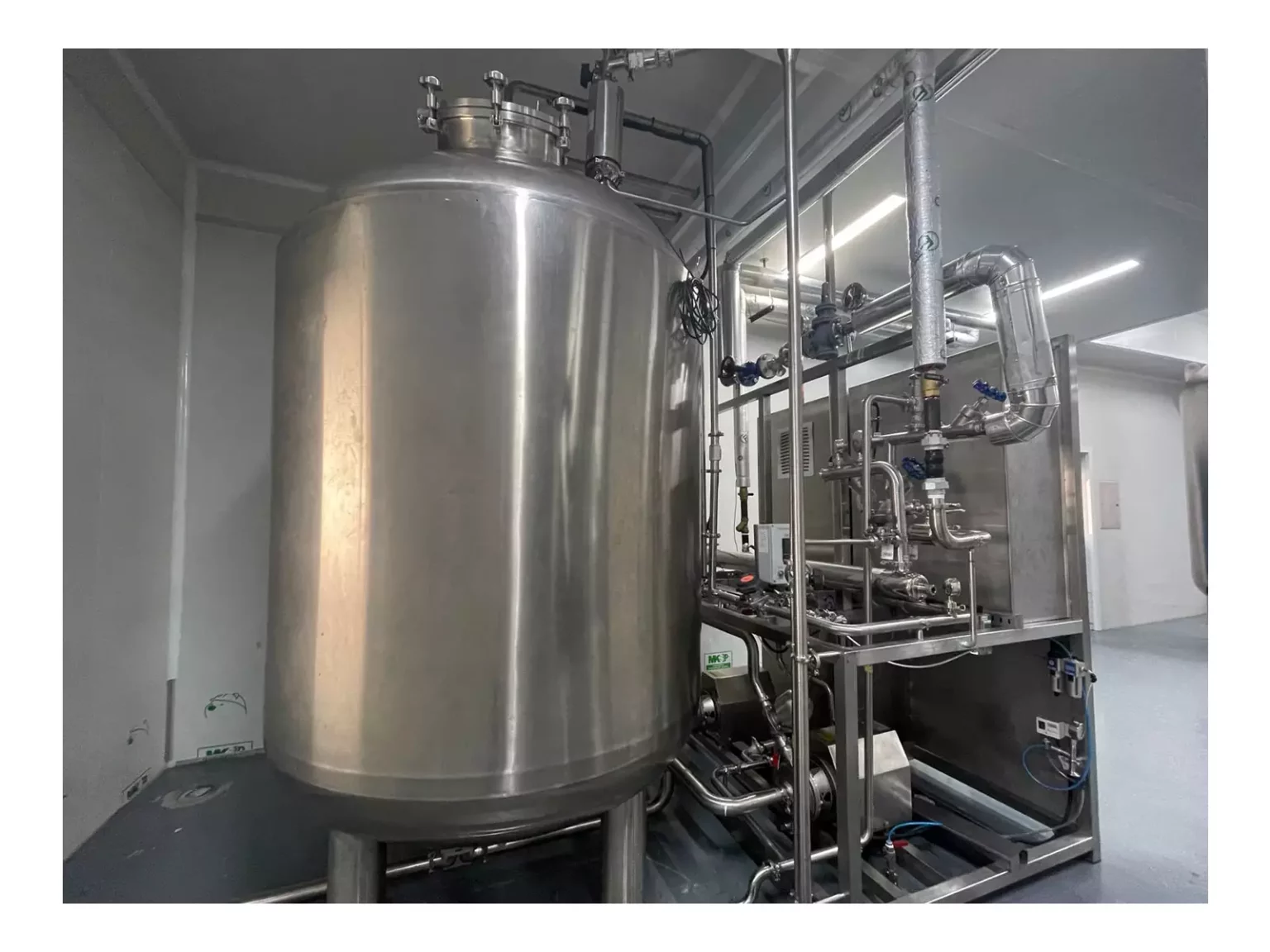

The WFI generation system includes periodic thermal or ozone sterilization of the storage tank and distribution loop. The tank is equipped with electric heating and a 0.22-micron hydrophobic air filter to prevent airborne contamination.
All loop piping is constructed from SS304 or SS316L stainless steel, with an outer roughness <0.8 μm and inner surface roughness <0.6 μm, ensuring a smooth, hygienic flow path.
