STA-RITE
Thermoplastic, 1/2 to 1 HP, 115V/230V, 30-50 Switch, 1-1/4" Suction, 1" Discharge
The PN Series Pumps are corrosion and abrasion-resistant and are ideal for wells with pumping levels of 25' or less. Self-priming after the pump housing is initially filled with water. Capacities to 18 GPM. Supplied with the industry standard 30-50 pressure switch setting.
Pentair STA-RITE PN Series Well Jet Pump Product Details
| Model No. |
HP |
Description |
Pipe Tapping Sizes |
Motor Voltage |
|
|
Suction |
Discharge |
||||
| PNC-10 |
½ |
Base Mounted Pump |
1 ¼” |
1” |
115/230 |
| PND-10 |
¾ |
Base Mounted Pump |
1 ¼” |
1” |
115/230 |
| PNE-10 |
1 |
Base Mounted Pump |
1 ¼” |
1” |
115/230 |
Pump Performance (Capacity in Gallons/Liters per Minute)
|
HP |
Model No. |
Total Suction |
Discharge Pressure PSI / Bar |
Shut Off PSI / Bar |
||
|
30/2.1 |
40/2.8 |
50/3.5 |
||||
|
½ |
PNC-10 |
5/1.5 |
8.5/32.2 |
7.4/28.0 |
5.2/19.7 |
77/5.30 |
|
10/3.0 |
7.1/26.9 |
6.4/24.2 |
5.1/19.3 |
|||
|
15/4.6 |
6.5/24.6 |
6.1/23.1 |
4.5/17.0 |
|||
|
20/6.1 |
5.4/20.4 |
5.1/19.3 |
4.1/15.5 |
|||
|
25/7.6 |
4.1/15.5 |
4.0/15.1 |
3.4/12.9 |
|||
|
¾ |
PND-10 |
5/1.5 |
12.1/45.8 |
10.7/40.5 |
8.5/32.2 |
78/5.37 |
|
10/3.0 |
10.7/40.5 |
10.2/38.6 |
8.4/31.8 |
|||
|
15/4.6 |
9.0/34.1 |
8.5/32.2 |
8.1/30.7 |
|||
|
20/6.1 |
7.6/28.8 |
7.3/27.6 |
7.1/26.9 |
|||
|
25/7.6 |
5.3/20.1 |
5.7/21.6 |
5.1/19.3 |
|||
|
1 |
PNE-10 |
5/1.5 |
18.0/68.1 |
16.8/63.6 |
13.5/51.1 |
67/4.62 |
|
10/3.0 |
17.1/64.7 |
16.1/60.9 |
13.4/50.7 |
|||
|
15/4.6 |
14.9/56.4 |
14.4/54.5 |
13.0/49.2 |
|||
|
20/6.1 |
12.6/47.7 |
12.2/46.2 |
12.0/45.4 |
|||
|
25/7.6 |
8.8/33.3 |
8.5/32.2 |
8.1/30.7 |
|||
Benefits of Pentair STA-RITE PN Series Well Jet Pumps
- Quality Construction: Fiberglass-reinforced thermoplastic body provides total corrosion resistance and high resistance to abrasion.
- Built-in Jet: Shallow-well jet has corrosion-resistant polypropylene nozzle and venturi.
- Impeller: Precision-molded for perfect balance…ultra-smooth for highest performance and efficiency.
- Precision-Molded Diffuser: Polypropylene diffuser allows pump to prime faster, handle more air.
- Heavy-Duty Motor: Stainless steel shaft and dual heavy-duty ball bearings.
- Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation.
- Dual Voltage Capability: Dual voltage motors are shipped at the 230-volt setting.
- Professional Quality, Pre-set 30-50 PSI: Allows for cut-in pressure adjustments.
- New Nozzle Cleanout: Easy plug removal and access for ease of service.
- New Drain Plug: Bottom-mounted for easy draining and winterization.
Pentair STA-RITE PN Series Well Jet Pump Features
- Materials of Construction:
- Body and Seal Plate: Fiberglass- reinforced thermoplastic
- Impeller: Engineered polymer
- Base: 12-gauge steel
- Nozzle, Venturi, Diffuser: Polypropylene
- Horsepower: Available in 1/2, 3/4, or 1 HP
- Maximum Capacity: 18 GPM (PNE-10 Model)
- Flow At 10′ Lift And 40 PSI: 10.7 Gpm (PND-10 Model)
- Max Lift: 25′
- Max Shut-Off Pressure: 78 PSI (Model PND-10)
- Maximum Inlet Pressure: 22 PSI
- Pressure Switch Setting: 30 – 50 PSI
- Suction Size: 1-1/4″ NPT
- Drive Size: N/A
- Discharge Size: 1″ NPT
- Amp Draw (Full Load) – 1 HP: 7.4 Amps on 230v / 14.8 Amps on 115v
- Amp Draw (Full Load) – 3/4 HP: 6.2 Amps on 230v / 12.4 Amps on 115v
- Amp Draw (Full Load) – 1/2 HP: 4.95 Amps on 230v / 9.9 Amps on 115v
- Voltage: 230v / 115v
- Liquid Temperature: 140 °F (60 °C)
- Warranty: 1 year limited warranty
Applications for Pentair STA-RITE PN Series Well Jet Pumps
- Water Systems
- Booster Pump
- Marine Use
- Mist Sprayers – Poultry
- Fountains and Water Features

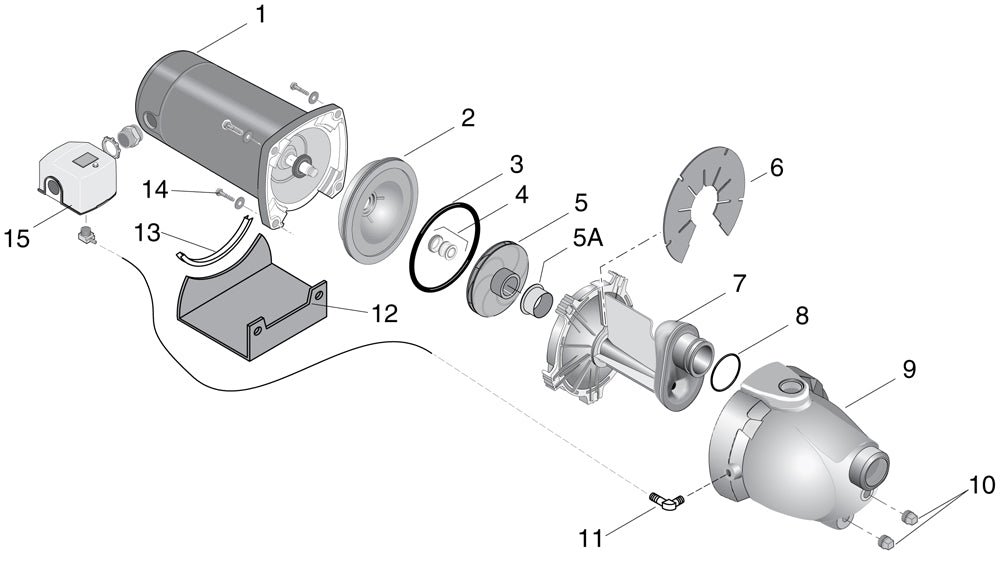

Repair Parts for Pentair STA-RITE PN Series Well Jet Pumps
| Ref. No. | Description | Qty. | PNC-10 1/2 HP |
PND-10 3/4 HP |
PNE-10 1 HP |
| 1 | Motor | 1 | J-218-582APKG | J218-590PKG | J218-596PKG |
| 2 | Seal Plate | 1 | N3-15P | N3-15P | N3-15P |
| 3 | O-Ring | 1 | U9-390 | U9-390 | U9-390 |
| 4 | Shaft Seal | 1 | U109-6A | U109-6A | U109-6A |
| 5 | Impeller | 1 | J105-40PNB | J105-42PNB | J105-22PB |
| 5A | Floating Wear Ring | 1 | N23-12SS | N23-12SS | N23-12SS |
| 6 | Priming Baffle | 1 | U97-153P | U97-153P | U97-153P |
| 7 | Nozzle/Venturi/Diffuser Assembly | 1 | N101-30PA | N101-30P | N101-29P |
| 8 | Nozzle O-Ring | 1 | U9-449 | U9-449 | U9-449 |
| 9 | Pump Body | 1 | N76-46P | N76-46P | N76-46P |
| 10 | 1/4″ Plug | 2 | ** | ** | ** |
| 11 | Barbed Fitting | 2 | U111-212T | U111-212T | U111-212T |
| 12 | Base | 1 | J104-9F | J104-9F | J104-9F |
| 13 | Rubber Pad | 1 | C35-5 | C35-5 | C35-5 |
| 14 | 3/8″ x 2″ Capcrews | 4 | ** | ** | ** |
| 15 | Pressure Switch | 1 | U217-1202 | U217-1202 | U217-1202 |
**Common Hardware, purchase locally.
