+GF+ Signet Water Quality Instruments Monitors and Transmitters
Automation Made Easy

+GF+ Signet Panel and Field Mount Transmitters and Sensors for monitoring Flow, pH, Conductivity, Level, Temperature and various water quality parameters in a RO, UF, MF, NF, SWRO, or other Water Treatment Systems.

Signet Water Quality Instruments Details & Ordering Information

Model No. Description Range

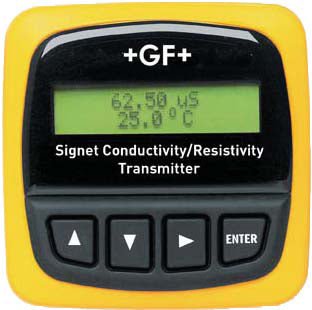

SIGNET 8850 CONDUCTIVITY/TDS/RESISTIVITY TRANSMITTERS
3-8850-1P Panel Mount Transmitter – One input with 4-20mA output and one open collector; uses 2 wire power N/A
3-8850-1 Field Mount Transmitter – One input with 4-20mA output and one open collector; uses 2 wire power N/A

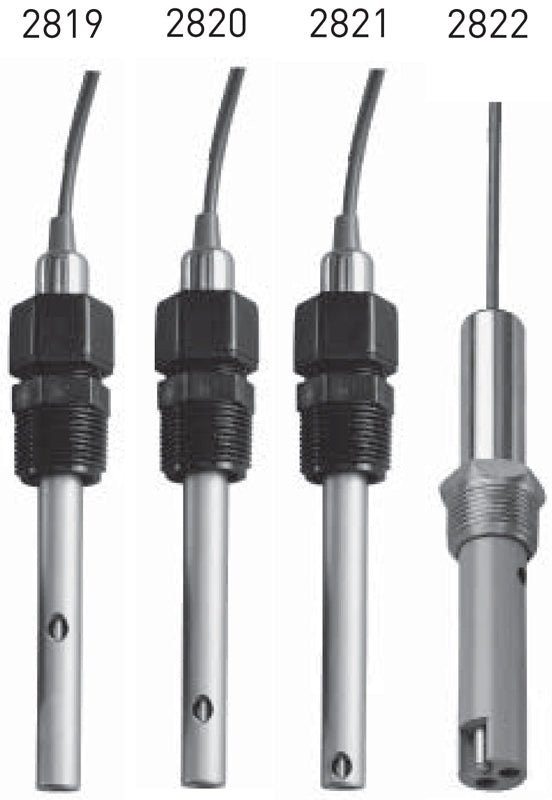

SIGNET 2818-2823 CONDUCTIVITY/TDS/RESISTIVITY ELECTRODES (for Field or Panel Mount Transmitters)
3-2819-1 Sensor – Cell Constant ( 0.01) 0-20 MΩ
3-2820-1 Sensor – Cell Constant ( 0.1) 0-100 PPM
3-2821-1 Sensor – Cell Constant ( 1.0) 100-10,000 PPM
3-2822-1 Sensor – Cell Constant ( 10) 10,000-50,000 PPM
SIGNET 2850 CONDUCTIVITY/TDS/RESISTIVITY INTEGRAL BLIND TRANSMITTERS
3-2850-52-39 Integral Transmitter/ Sensor – Cell Constant ( 0.01) 0-20 MΩ
3-2850-52-40 Integral Transmitter/ Sensor – Cell Constant ( 0.1) 0-100 PPM
3-2850-52-41 Integral Transmitter/ Sensor – Cell Constant ( 1.0) 100-10,000 PPM
3-2850-52-42 Integral Transmitter/ Sensor – Cell Constant ( 10) 10,000-50,000 PPM

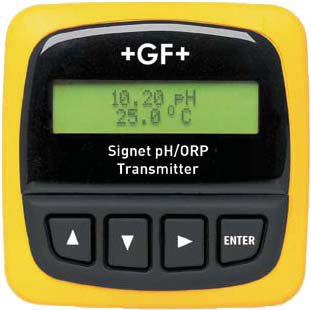

SIGNET 8750 pH/ORP SIGNET PANEL AND FIELD MOUNT TRANSMITTERS
3-8750-1P Panel Mount Transmitter – One input with 4-20mA output and one open collector; uses 2 wire power N/A
3-8750-1 Field Mount Transmitter – One input with 4-20mA output and one open collector; uses 2 wire power N/A
SIGNET 2724, 2725 pH/ORP ELECTRODES (for Field or Panel Mount Transmitters)
3-2724-10* pH Sensor – Flat Glass 0-14 pH
3-2725-60* ORP Sensor – Flat Glass (-)2,000 – 2,000 mV
SIGNET 2750 & 2760 pH/ORP PREAMPLIFIERS
3-2750-2 Transmitter/Preamp N/A
3-2760-11 pH/ORP Preamplifier, In-Line, ¾” NPT Threads, 15 ft. cable N/A
SIGNET 8550 ProcessPRO FLOW TRANSMITTERS
3-8850-1P Panel Mount Transmitter – One input with 4-20mA output and one open collector; uses 2 wire power N/A
3-8850-1 Field Mount Transmitter – One input with 4-20mA output and one open collector; uses 2 wire power N/A
SIGNET FLOW TRANSMITTER SENSORS
3-2536-P0* 2536 Rotor-X Paddlewheel Flow Sensor (Blue) 66:1 Turndown R2t:0
P51530-P0* 515 Rotor-X Paddlewheel Flow Sensor (Red) 20:1 Turndown R2t:0
3-2537-6C-P0 2537 Paddlewheel Blind Flow Sensor N/A
Pressure Noshok Blind Transmitters
100-150-1-1-2-7 Pressure Noshok Blind Transmitter 0-150 PSI
100-500-1-1-2-7 Pressure Noshok Blind Transmitter 0-500 PSI
100-1500-1-1-21 Pressure Noshok Blind Transmitter 0-1500 PSI
Turbidimeters Hach
6010100 1720E Turbidimeter with SC100 Controller 0-100 NTU
6010101 1720E Turbidimeter Only 0-100 NTU

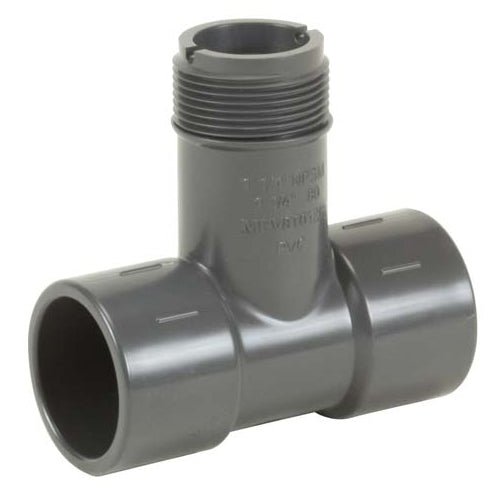

*Installation Tees are sold separately for parts marked with an asterisk. (See parts tab for ordering information)

GF Signet 8850 Panel Mount Conductivity, TDS, and Resistivity Transmitter GF Signet 8850 Field Mount Conductivity, TDS, and Resistivity Transmitter Signet Conductivity TDS Resistivity Electrodes Signet 2850 Conductivity TDS Resistivity Integral Blind Transmitters Signet Panel Mount 8750 pH ORP Transmitter
Signet 8850 Conductivity/TDS/
Resistivity Transmitter, Panel Mount		 Signet 8850 Conductivity/TDS/
Resistivity Transmitter, Field Mount		 Signet Conductivity TDS Resistivity Electrodes Signet 2850 Conductivity TDS Resistivity Integral Blind Transmitters Signet 8750 pH ORP Transmitter, Panel Mount
Signet Field Mount 8750 pH ORP Transmitter Signet pH ORP Electrodes (Flat Glass) Signet 2750 pH ORP Preamplifier Signet 2760 pH ORP Preamplifier (In-Line) Signet 8850 Panel Mount Flow Transmitter
Signet 8750 pH ORP Transmitter, Field Mount Signet pH ORP Electrodes (Flat Glass) Signet 2750 pH ORP Preamplifier Signet 2760 pH ORP Preamplifier (In-Line) Signet 8850 Flow Transmitter, Panel Mount
Signet 8850 Field Mount Flow Transmitter Signet 2536 Rotor-X Paddlewheel Flow Sensor Signet 515 Rotor-X Paddlewheel Flow Sensor Signet 2537 Paddlewheel Blind Flow Sensor
Signet 8850 Flow Transmitter, Field Mount Signet 2536 Rotor-X Paddlewheel Flow Sensor



 Signet 515 Rotor-X Paddlewheel Flow Sensor



 Signet 2537 Paddlewheel Blind Flow Sensor
