AMI Backwash Filters for Whole House, Commercial, and Pretreatment Applications
Pyrolox Filters with Automatic Backwash for Iron, Sulfur & Manganese Reduction

A naturally mined ore, Pyrolox is a mineral form of manganese dioxide which has been used in water treatment for more than 75 years. Pyrolox is a granular filtration media for hydrogen sulfide, iron and manganese reduction. Pyrolox functions as a catalyst, but itself remains relatively unchanged. Pyrolox works on a principle whereby the hydrogen sulfide, iron and manganese are oxidized and trapped on the media while simple backwashing cleans the bed. No chemical regeneration is required, nothing is imparted into the drinking water and Pyrolox has a high capacity for low contaminant concentrations. Pyrolox can be used in conjunction with aeration, chlorination, ozone or other pretreatment methods for difficult applications. Chlorine or other oxidants accelerate the catalytic reaction.

Pyrolox Filters with Automatic Backwash Product Details

Model No.*

Service Flow Rate**  (GPM)

Backwash Flow**  (GPM)

Volume of Media (ft3)

Resin Tank
(Dia”×H”)

Control Valve Size

In/Out Conn.

Approx. Shipping Wt. (lbs)

Pyrolox
(Only)

 Total (Incl. Underbed)
W-MFI744PET

1.3

6.5

0.5

0.6

7×44

1”

1”

110
W-MFI844PET

1.7

7.5

0.6

0.7

8×44

1”

1”

120
W-MFI940PET

2.2

11

0.7

0.8

9×40

1”

1”

135
W-MFI1054PET

2.7

13

1.2

1.4

10×54

1”

1”

215
W-MFI1252PET

3.9

17

1.7

2.0

12×52

1”

1”

295
W-MFI1354PET

4.6

20

2.0

2.3

13×54

1”

1”

360
W-MFI1465PET

5.3

25

2.5

3.0

14×65

1”

1”

460
W-MFI1665PET

7.0

30

3.5

4.0

16×65

1.5”

1.5”

635
W-MFI2162PET

12.0

45

6.0

7.0

21×62

1.5”

1.5”

1,060
W-MFI2472PET

15.7

75

7.5

9.5

24×72

2”

2”

1,440

Ordering Notes:

  • Pyrolox Filters are available with USA or European style plugs and voltages. Please add the appropriate voltage code to the end of the model when ordering.
    • 120V AC/60Hz with USA cord = US
    • Example: W-MFI744PET-US
    • European 220V AC = EU (EU plug is removable to convert into universal 220v cord)
  • 5 gpm per sq. ft. of media is the best design condition for filtration. For relatively clean water, you may go up to design criteria of 15 gpm per sq. ft. Backwash flow rate based on 25 psi pressure drop.
  • Skid mounting, control panel and custom sizes and configurations are available upon request. AMI Pyrolox Filters are offered standard with new state of the art electronic programmable valves, but may be ordered with electromechanical Fleck valve heads upon request.

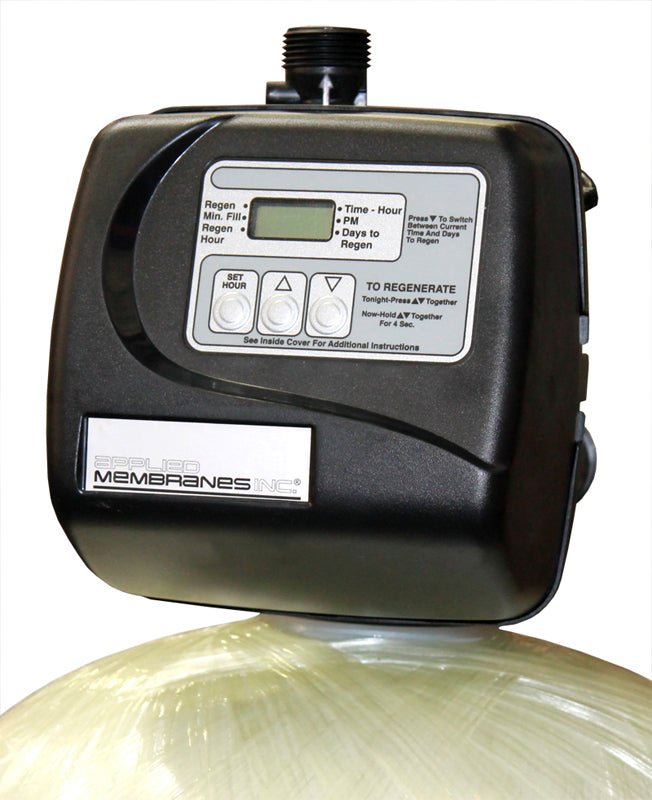

Electronic Programmable Control Valve for Iron Filter

Electronic Programmable Control Valve

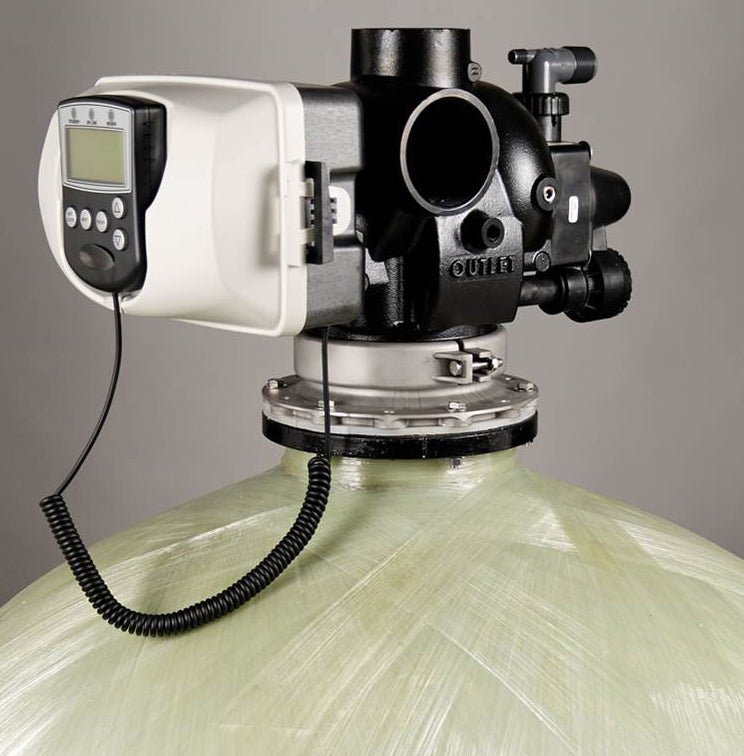

 Electronic Programmable Commercial Control Valve for Iron Filter

Electronic Programmable Commercial Control Valve

 Skid Mounted Commercial Media Filter

Skid Mounted Commercial Media Filter

 Custom Industrial Media Installation

Custom Industrial Media Installation
