PW Packaged

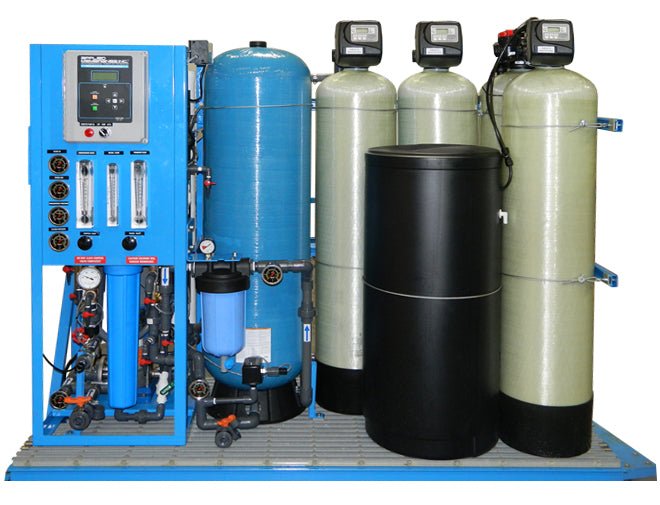

PW-Series Packaged RO Plants

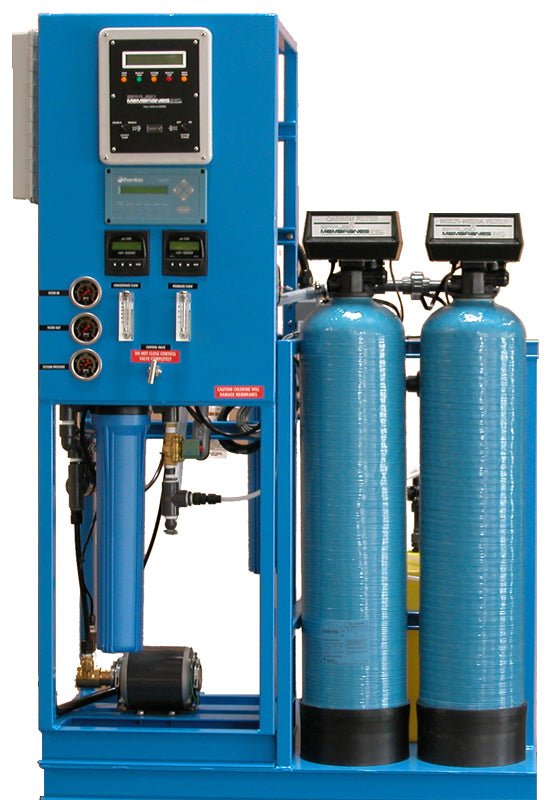

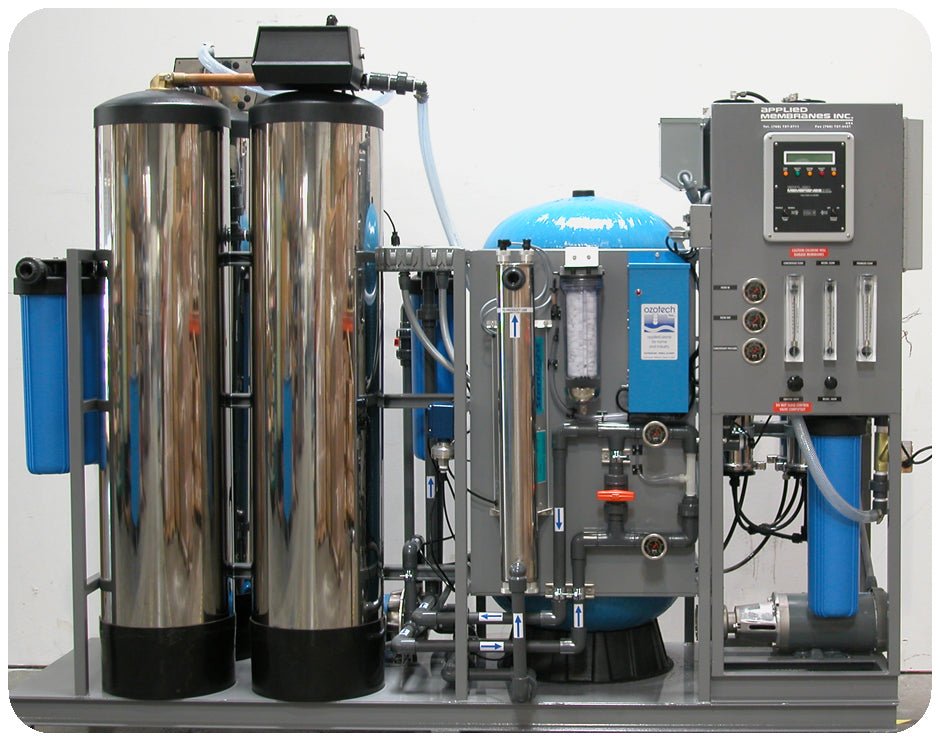

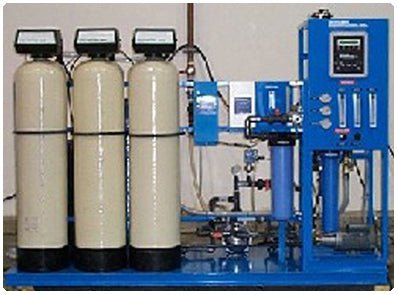

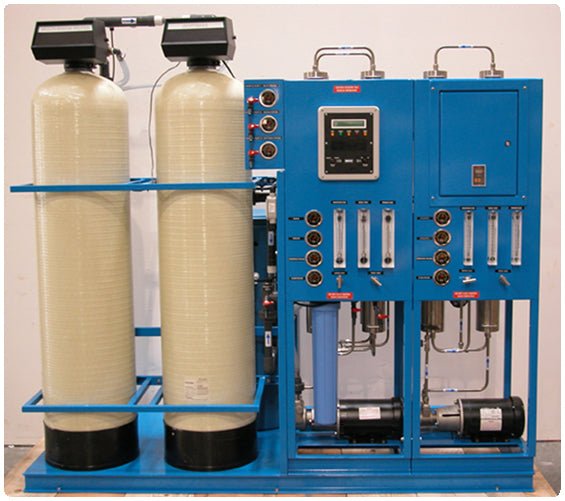

Applied Membranes offers a complete mini RO water purification plant fully assembled on a single skid. From pretreatment to reverse osmosis system to post treatment and storage tank, the package is ready to produce high quality water for many applications.
These include water stores, water jet cutting machines, pharmaceutical, manufacturing and other industrial uses.
We use high-quality components and take pride in the overall quality and reliability of our systems. All systems are thoroughly tested before shipment.
PW Series – Packaged RO System Water Plant Ordering Information
| Model No. |
Product Flow |
System Dimensions (in/cm) |
Approx. Shipping Weight (Lb/Kg) |
|||
|
GPD |
m³/day |
Length |
Depth |
Height |
||
| PW-1500 |
1,800 |
6.8 |
96/244 |
34/86 |
81/206 |
920/420 |
| PW-3000 |
3,600 |
13.6 |
96/244 |
34/86 |
81/206 |
1275/580 |
| PW-4500 |
5,000 |
18.9 |
96/244 |
34/86 |
81/206 |
1375/625 |
| PW-6000 |
6,500 |
24.6 |
96/244 |
34/86 |
81/206 |
1500/680 |
| PW-8000 |
8,000 |
30.2 |
96/244 |
34/86 |
81/206 |
1550/703 |
| PW-10000 |
9,500 |
35.9 |
96/244 |
34/86 |
81/206 |
1650/748 |
Product Notes and Voltage Information
- All dimensions and weights are approximate.
- RO Systems rated at 77°F (25°C) using 1000ppm sodium chloride solution and 200psi (14 kg/cm²) pressure.
- RO System capacity changes significantly with water temperature. For higher TDS, a water analysis must be supplied and could result in modifications to the RO system.
- Please add our voltage codes to the end of the model number when ordering.
Example: PW-1500-216 = 220v / 1 ph / 60 hz
| Voltage Codes: |
|
|
AMI Packaged Reverse System Water Treatment Plants use proven, reliable components and are mounted on a sturdy powder-coated metal frame. There are numerous design details learned from years of experience that are incorporated in our water filtration systems. Our process and fluid design ensures an optimum membrane life and minimizes the membrane fouling.
|
 |
- Granulated Carbon Filter with Auto Backwash
- Water Softener with Auto Regeneration
- Reverse Osmosis System:
|
|
- Delivery System – Complete with a Repressurization Pump, Piping, Controls and a 40 Gallon Pressurized Storage Tank
- 1 Micron Extruded Carbon Post Filter
- Ultraviolet System to Disinfect the Treated Water
- Ozone System – Includes Air Preparation, Ozone Generator and Other Equipment Necessary for Ozonating the Treated Water
|
 |
Optional Equipment
|
*Recommended Minimum Option |
Replacement Parts & Consumables for PW Series Reverse Osmosis Systems Water Plants
- Replacement Reverse Osmosis Membranes for Packaged RO Water Plant Systems
- Replacement Membrane Pressure Vessels for Packaged RO Water Plant Systems
- Replacement Sediment Filters for Packaged RO Water Plant Systems
- Replacement Carbon Filters for Packaged RO Water Plant Systems
- Replacement Filter Housings for Packaged RO Water Plant Systems
- Replacement Commercial System Components for Packaged RO Water Plant Systems
- Membrane Cleaning Cartridges for Packaged RO Water Plant Systems
