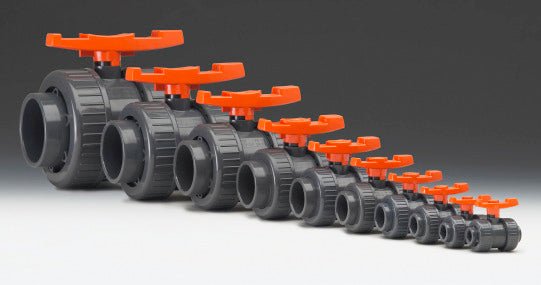

PVC Ball Valves
Type 375 True Union Ball Valves with Solvent Cement Socket End Connectors
The Georg Fischer 375 PVC ball valve is ideally suited for basic applications encompassing the water treatment sector, as well as other applications involving water.
Georg Fischer PVC Ball Valve Ordering Details
| Model No. |
Connection Size |
Material | Seal Material |
| 161 375 002 | ½” | PVC | EPDM |
| 161 375 003 | ¾ “ | PVC | EPDM |
| 161 375 004 | 1″ | PVC | EPDM |
| 161 375 006 | 1½” | PVC | EPDM |
| 161 375 007 | 2″ | PVC | EPDM |
| 161 375 008 | 2.5″ | PVC | EPDM |
| 161 375 009 | 3″ | PVC | EPDM |
| 161 375 010 | 4″ | PVC | EPDM |
Benefits of Georg Fischer True Union PVC Ball Valves
- Easy Installation and Removal
- Size range ½” to 4”
- 225 psi rating at 73°F
- NSF 61 approved
- Double stem seals
- Blow-out proof stems

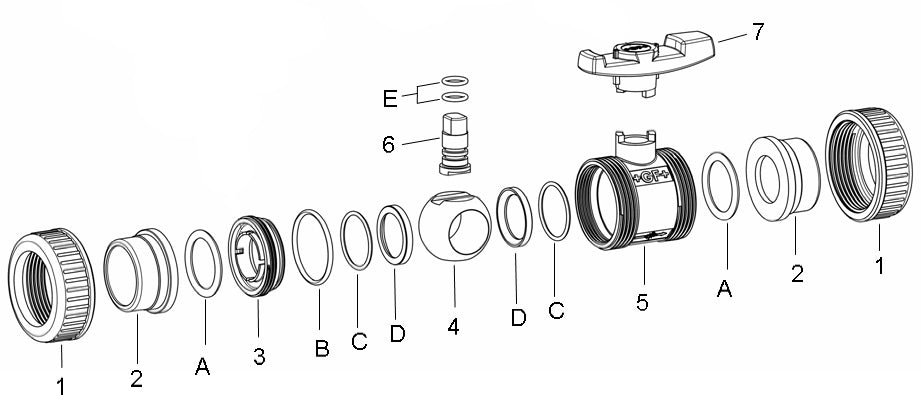

Georg Fischer True Union PVC Ball Valve Features
|
A. Face Seal B. Body Seal C. Backing Seal D. Ball Seal E. Stem Steal |
Applications for Georg Fischer True Union PVC Ball Valves
- Water Treatment
- Reverse Osmosis (RO) Systems
- Nanofiltration (NF) Systems
- Microfiltration (MF) Systems
- Ultrafiltration (UF) Systems
- Seawater Desalination RO Systems (SWRO)
- Whole-House Water Filter Systems
- Tap Water
- Commercial Water Treatment
Replacement Parts for Georg Fischer Ball Valves
| For Valve Model No. |
Connection Size |
Replacement Handle Part # | Seal Kit Part # |
| 161 375 002 | ½” | 161 490 900 | 161 375 403 |
| 161 375 003 | ¾” | 161 490 901 | 161 375 404 |
| 161 375 004 | 1″ | 161 490 902 | 161 375 405 |
| 161 375 006 | 1½” | 161 490 904 | 161 375 407 |
| 161 375 007 | 2″ | 161 490 905 | 161 375 408 |
| 161 375 008 | 2.5″ | 161 490 906 | 161 375 409 |
| 161 375 009 | 3″ | 161 490 907 | 161 375 410 |
| 161 375 010 | 4″ | 161 490 908 | 161 375 411 |
|
|
|
