Polyacrylonitrile
ART® polyacrylonitrile(PAN) spiral wound ultrafiltration (UF) membrane elements provide high performance with a molecular weight cut-off of 20,000, and are ideal for oily waste water and applications where tolerance to solvents and oils is required.
ART membrane elements are among the finest in the industry. With hundreds of thousands of membranes in operation world-wide, we offer these spiral wound ultrafiltration PAN UF membrane elements in standard residential and commercial sizes. ART UF Membranes are 100% Quality and Performance Tested in our ISO 9001:2015 Certified Facilities. Each PAN UF membrane meets or exceeds our strict performance requirements before shipping. For the past 30 years we have earned a reputation of delivering consistent, high quality which makes ART Ultrafiltration Membranes the natural choice for use in water treatment systems.
| Model No. | Size (Dia.”× Length”) |
Style | Outer Wrap | Molecular Weight Cut-Off (MWCO) |

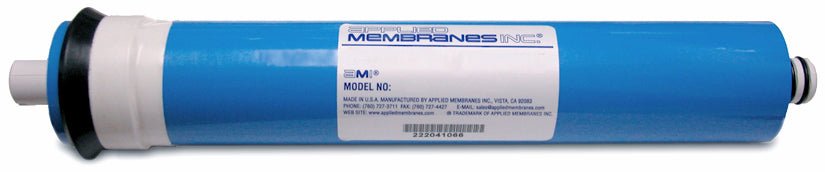

| M-U1812PAN | 1.75 × 12 | Standard | Tape Wrap | 20,000 |

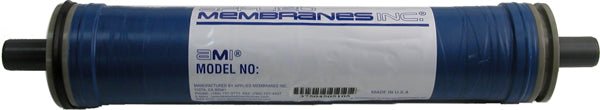

| M-U2514PAN | 2.5 × 14 | Standard | Tape Wrap | 20,000 |
| M-U2521PAN | 2.5 × 21 | Standard | Tape Wrap | 20,000 |

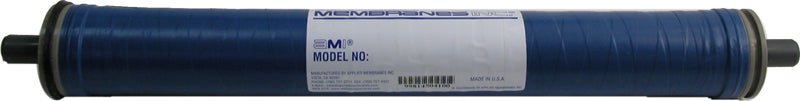

| M-U2540PAN | 2.5 × 40 | Standard | Tape Wrap | 20,000 |

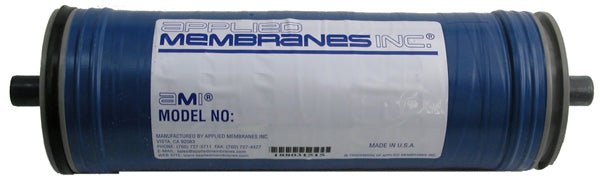

| M-U4014PAN | 4.0 × 14 | Standard | Tape Wrap | 20,000 |

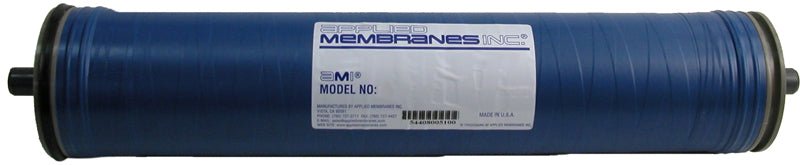

| M-U4021PAN | 4.0 × 21 | Standard | Tape Wrap | 20,000 |
| M-U4040PAN | 4.0 × 40 | Standard | Tape Wrap | 20,000 |
| M-U4040PAND | 4.0 × 40 | Flush-Cut | Tape Wrap | 20,000 |

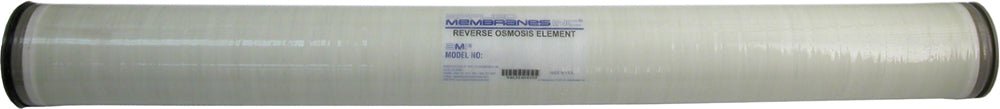

| M-UB4040PAND | 4.0 × 40 | Flush-Cut | FRP Wrap | 20,000 |
| M-UB8040PAN400 | 8.0 × 40 | Flush-Cut, 46 mil | FRP Wrap | 20,000 |
30 mil spacer standard for 2-4” Dia. For 43 mil spacer, add -43 at the end of the model number. Example: M-U2540PAN-43.
Note: An interconnector is provided with each 8” element, part no. PV-IN810.
M-U1812PAN |
M-U2514PAN |
M-U2521PAN |
M-U2540PAN |
M-U4014PAN |
M-U4021PAN |
M-U4040PAN |
M-U4040PAND |
M-UB4040PAND |
- Tolerant to Many Solvents and Oils
- Filtration to 20,000 Molecular Weight Cut-Off
- Low Pressure Requirements For Reduced Operating Costs and Power Consumption
- High Flux for High Flow Rates
- Robust Materials and Construction for Long Life
- Manufactured in our ISO 9001:2015 Certified Facilities
- 100% Performance and Quality Tested
- Backed by our Experienced Technical Support Staff
- High Quality for Consistent and Reliable Performance
- Uses the Most Advanced Membrane Technology and Manufacturing Processes
- Standard Dimensions to Fit in Commonly Available Housings
|
|
