Pentek (Ametek) Slim Line®, Standard and Big Blue® Filter Housings

Pentair® Pentek Slim Line, Standard, and Big Blue Filter Housings are manufactured with reinforced polypropylene or clear Styrene-Acrylonitrile. The reinforced polypropylene cap offers an optional pressure relief button on the inlet side to relieve pressure inside the housing when changing filter cartridges.

Pentek (Ametek) Slim Line Filter Housings are an excellent choice for low-flow applications and when space and chemical compatibility are primary concerns. Big Blue Filter Housings offer large-capacity filtration, ideal for high flow and heavy sediment applications.

Pentek (Ametek) Slim Line & Standard Style Filter Housings are designed to fit standard 5”, 10” and 20” filter cartridges. Pentek (Ametek) Big Blue housings fit Big Blue style 10” and 20” length cartridges.

5” Standard (Slim Line Style) Filter Housings

For 2.5”Dia. × 5”L Filter Cartridges

Model No.	For Filters		Color		In/Out Conn. (FNPT)	Body Style	Rpl. O-Ring	Pressure Relief
Model No.	Length	Dia. (Style)	Body	Cap	In/Out Conn. (FNPT)	Body Style	Rpl. O-Ring	Pressure Relief
158002	5”	Standard	Blue	Black	⅜”	Slim Line	151121	Yes
158138	5”	Standard	Blue	Black	¼”	Slim Line	151121	No
158203	5”	Standard	Blue	Black	½”	Slim Line	151121	Yes

10” Standard (Slim Line & Standard Style) Filter Housings

For 2–2½”Dia. × 9¾”L Filter Cartridges

Model No.	For Filters		Color		In/Out Conn. (FNPT)	Body Style*	Rpl. O-Ring	Pressure Relief
Model No.	Length	Dia. (Style)	Body	Cap	In/Out Conn. (FNPT)	Body Style*	Rpl. O-Ring	Pressure Relief
158008	10”	Standard	Clear	Blue	⅜”	Slim Line	151121	No
158098	10”	Standard	White	White	⅜”	Slim Line	151121	No
158115	10”	Standard	Blue	Black	¼”	Slim Line	151121	Yes
158125	10”	Standard	White	White	¼”	Slim Line	151121	No
158182	10”	Standard	White	White	¼”	Slim Line	151121	Yes
158196	10”	Standard	Blue	Black	½”	Slim Line	151121	No
158195	10”	Standard	Blue	Black	½”	Slim Line	151121	Yes
150068	10”	Standard	Blue	Black	¾”	Standard	151120	No

*While the “Standard” filter body is slightly wider than the “Slim Line” filter body, both “Slim Line” and “Standard” style of filter housing bodies will fit the same 10” Standard filter cartridges.

20” Standard (Slim Line & Standard Style) Filter Housings

For 2–2½”Dia. × 20”L Filter Cartridges

Model No.	For Filters		Color		In/Out Conn. (FNPT)	Body Style*	Rpl. O-Ring	Pressure Relief
Model No.	Length	Dia. (Style)	Body	Cap	In/Out Conn. (FNPT)	Body Style*	Rpl. O-Ring	Pressure Relief
158129	20”	Standard	Blue	Black	⅜”	Slim Line	151121	No
158204	20”	Standard	Blue	Black	½”	Slim Line	151121	Yes
158205	20”	Standard	Blue	Black	½”	Slim Line	151121	No
150069	20”	Standard	Blue	Black	¾”	Standard	151120	Yes
150070	20”	Standard	Blue	Black	¾”	Standard	151120	No

*While the “Standard” filter body is slightly wider than the “Slim Line” filter body, both “Slim Line” and “Standard” style of filter housing bodies will fit the same 20” Standard filter cartridges.

10” Big Blue Filter Housings

For 4½”Dia. × 10”L Filter Cartridges

Model No.	For Filters		Color		In/Out Conn. (FNPT)	Rpl. O-Ring	Pressure Relief
Model No.	Length	Dia. (Style)	Body	Cap	In/Out Conn. (FNPT)	Rpl. O-Ring	Pressure Relief
150469	10”	Big Blue	Blue	Black	¾”	151122	Yes
150470	10”	Big Blue	Blue	Black	¾”	151122	No
150237	10”	Big Blue	Blue	Black	1”	151122	Yes
150238	10”	Big Blue	Blue	Black	1”	151122	No
150239	10”	Big Blue	Blue	Black	1½”	151122	Yes
150240	10”	Big Blue	Blue	Black	1½”	151122	No

20” Big Blue Filter Housings

For 4½”Dia. × 20”L Filter Cartridges

Model No.	For Filters		Color		In/Out Conn. (FNPT)	Rpl. O-Ring	Pressure Relief
Model No.	Length	Dia. (Style)	Body	Cap	In/Out Conn. (FNPT)	Rpl. O-Ring	Pressure Relief
150467	20”	Big Blue	Blue	Black	¾”	151122	Yes
150468	20”	Big Blue	Blue	Black	¾”	151122	No
150233	20”	Big Blue	Blue	Black	1”	151122	Yes
150234	20”	Big Blue	Blue	Black	1”	151122	No
150235	20”	Big Blue	Blue	Black	1½”	151122	Yes
150236	20”	Big Blue	Blue	Black	1½”	151122	No

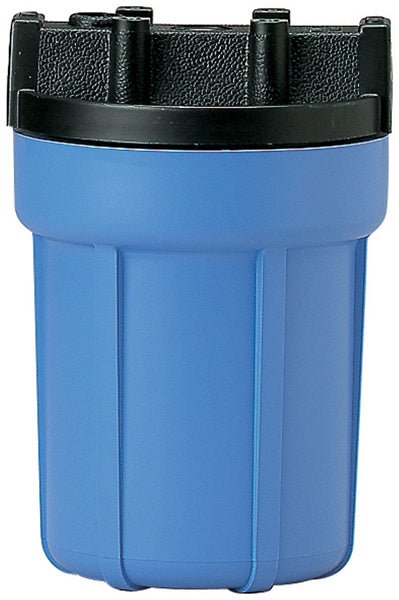

5″ Slim Line Blue

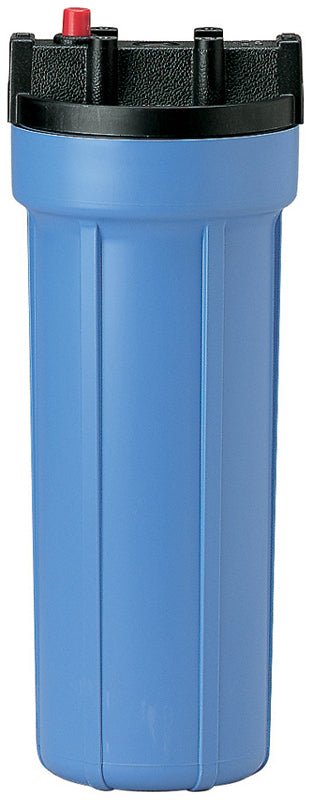

10″ Slim Line Blue
(with pressure relief)

10 Slim Line Clear Pentek Filter Housing

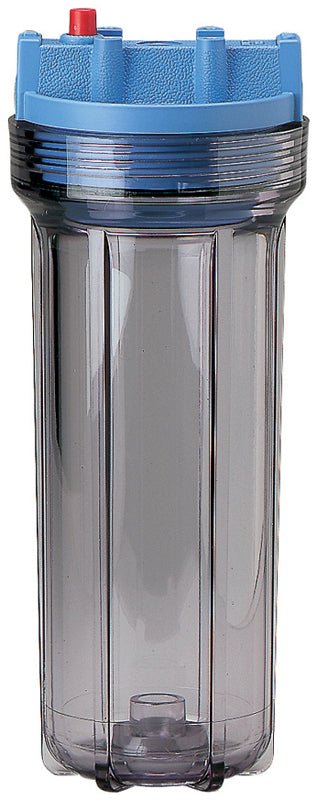

10″ Slim Line Clear
(with pressure relief)

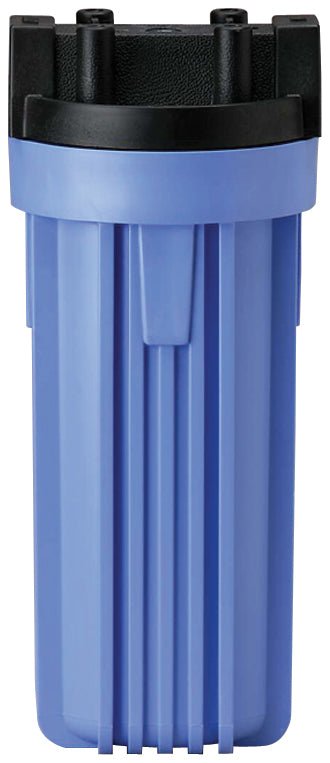

10″ Standard Blue

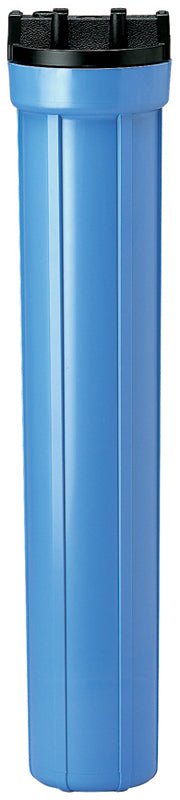

20″ Slim Line Blue

20″ Standard Blue

10″ Big Blue
(with pressure relief)

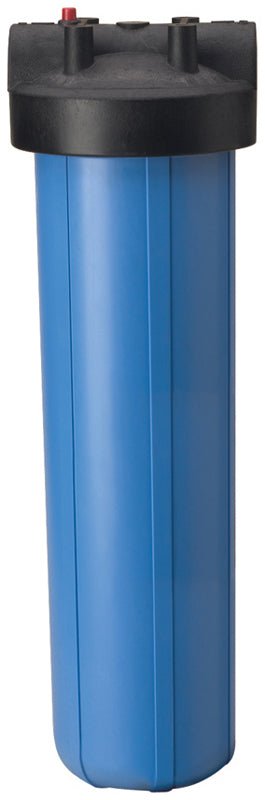

20″ Big Blue
(with pressure relief)

Model No.	Description	Image

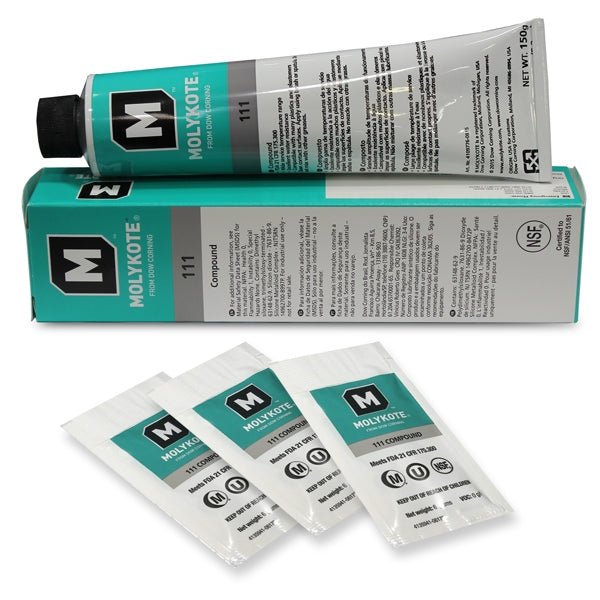

H-C111DC	Molykote Compound 111 – 5 Ounce Tube
H-C111DC-6GM	Molykote Compound 111 – 6 Gram Pillow Pack Sold individually, or in boxes of 100 at bulk pricing
