Needle Valves
Commonly used as concentrate control valves (also referred to as system pressure control valves) in RO, UF, NF, MF, SWRO Membrane Water Treatment Systems, needle valves use a tapered pin to gradually open or close the water stream, allowing for precise regulation of flow.
Needle valves are ideal for continuous use applications where a liquid stream must be maintained at a constant adjustable flow rate.
Available in Brass and Stainless Steel models.
Panel Mount Needle Valve Ordering Details
| Model No. |
Connections |
Material |
Pressure Rating | |
| B-1RS4 |
1/4″T x 1/4″T |
Brass |
3000 PSIG @ 100°F (206 BAR @ 37°C) |
400°F @ 390 PSIG (204°C @ 2.68 BAR) |
| B-626 | 3/8″T x 3/8″T | Brass | 3000 PSIG @ 100°F (206 BAR @ 37°C) |
Data not available. |
| B-651 | 1/2″Tx 1/2″T | Brass | 3000 PSIG @ 100°F (206 BAR @ 37°C) |
Data not available. |
| SS-1RS4 |
1/4″T x 1/4″T |
Stainless Steel | 5000 PSIG @ 100°F (344 BAR @ 37°C) |
450°F @ 3435 PSIG (232°C @ 2.36 BAR) |
| SS-1RS6 | 3/8″T x 3/8″T | Stainless Steel | 5000 PSIG @ 100°F (344 BAR @ 37°C) |
450°F @ 3435 PSIG (232°C @ 2.36 BAR) |
| SS-1RS8 | 1/2″Tx 1/2″T | Stainless Steel | 5000 PSIG @ 100°F (344 BAR @ 37°C) |
450°F @ 3435 PSIG (232°C @ 2.36 BAR) |

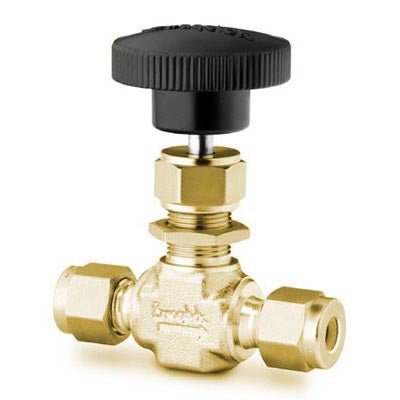

B-1RS4 Brass Needle Valve for Commercial RO |

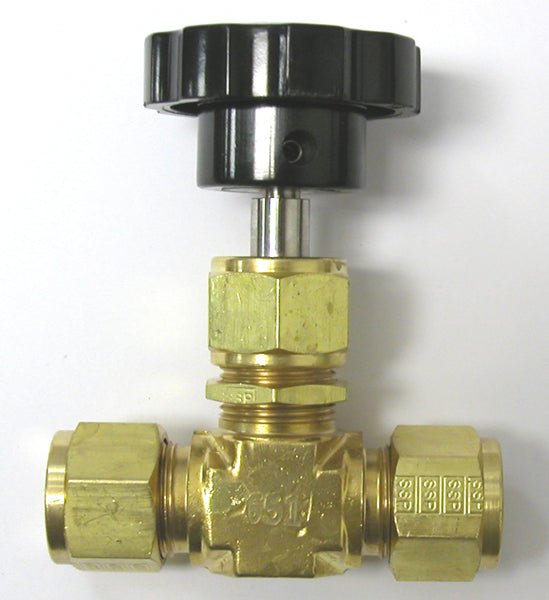

B-651 Brass Needle Valve for Commercial RO |

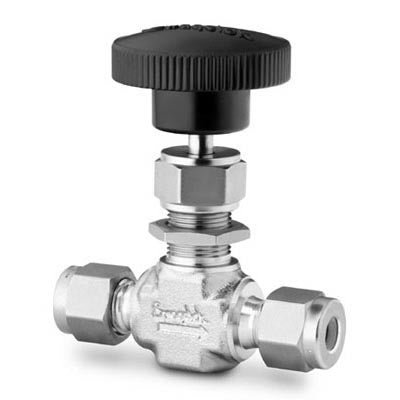

Stainless Steel Needle Valve for Commercial RO |
Benefits of Needle of Valves for Commercial Water Treatment Systems
- Allows precise regulation of flow
- Easily adjustable with the turn of a handle
- Suitable for continuous use applications
- Panel Mounting for installation into a water treatment system control panel
- Controls system pressure and recovery when installed on the drain line of an RO system
Panel Mount Needle Valve Features
- Straight (2-Way) Flow Pattern
- Tube Fitting end Fittings
- Phenolic Knob Handle
- Available in Brass and SS Materials
- Panel Mountable
Applications for Panel Mount Needle Valves
- Commercial Reverse Osmosis (RO) System Control
- Seawater RO System Control
- Ultrafiltration (UF) System Control
- Nanofiltration (NF) System Control
- Microfiltration (MF) System Control
- Flow Control for Water Stream
