Motors
Totally Enclosed Fan-Cooled (TEFC) Motors for use with rotary vane pumps (including PROCON Pumps) for Commercial Reverse Osmosis and Water Treatment Systems. Available in 56C Frame for Bolt-On style Pumps, and 48YZ Frame for Clamp-On style Pumps.
Frame 56C Motors for Bolt-On Rotary Vane (PROCON) Pumps
| Model No. | HP | Volts | Hz | Phase | Image |
| P-MG573 | 1 | 110/220 | 50/60 | 1 Ph |  |
| P-MG574 | 1 ½ | 110/220 | 50/60 | 1 Ph |

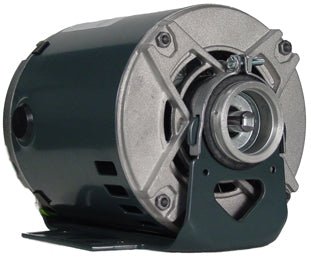

Frame 48YZ Motors for Clamp-On Rotary Vane (PROCON) Pumps
| Model No. | HP | Volts | Hz | Phase | Image |
| P-MP806 | 1/3 | 110 | 60 | 1 Ph |  |
| P-MP828 | 1/3 | 110/220 | 50/60 | 1 Ph | |
| P-MP871 | ½ | 110/220 | 50/60 | 1 Ph | |
| P-MP872 | ¾ | 110/220 | 50/60 | 1 Ph | |
|
*For 1 HP motor for clamp-on pump, use a Frame 56C motor for bolt-on pump with adapter part no. 3540 |
|||||
Benefits of RO Pump Motors for Rotary Vane Pumps
- Available in 56C Frame for Bolt-On Pumps, or 48YZ Frame for Clamp-On Pumps
- Available in a wide range of HP and Voltages
Motors for Rotary Vane (PROCON) Pumps Features
- Totally Enclosed Fan-Cooled
- ‘¼ to 1 ½ Horse Power
- 50 & 60 Hz, 110, 220 & 380 V, 1 & 3 Phase Electrical
- For 56C Frame Bolt-On or 48YZ Clamp-On Mounting Style Rotary Vane Pumps
- Ideal for use in RO and Water Treatment Systems
Applications for Motors for Rotary Vane (PROCON) Pumps
|
|
Mounting hardware for PROCON Bolt-On Pumps (for 56C Frame Motors)
| Model No. | Description |  |
| Mounting Brackets/Adapters | ||
| P-B1048P | Adapter for 56C Frame Motor, Series 1-5* | |
| P-B3207P | Adapter for 56C Frame Motor, Series 6* | |
| Couplings | ||
| P-C3045P | Coupler, 7/16” × ⅝”, Bolt on 56C Type, Series 1-5* | |
| P-C3306P | Coupler, ⅝” × ⅝”, Bolt on 56C Type, Series 6* | |
| Optional Hardware | ||
| P-K3208P | Key | |
| P-BW3216P | 6 each Bolts and Washers | |
*The 3rd character in the PROCON Part Number will determine the pump series.
Mounting hardware for PROCON Clamp-On Pumps (for 48YZ Frame Motors)
| Model No. | Description |  |
| 1113 | Mounting Clamp: V-Band Clamp for 48YZ Frame Motors (Old part no. P-BV100P) |
 |
 |
 |
| Adapter for PROCON Pump Bolt-On for 56C Frame Motor | Couplings & Key for PROCON Pump Bolt-On for 56C Frame Motor | V-Band Clamp for PROCON Pump Clamp-On for 48YZ Motor |

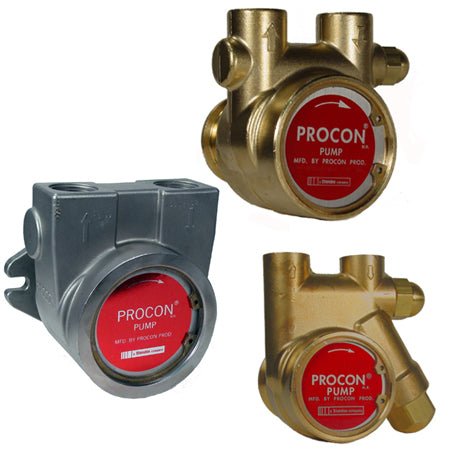

PROCON Rotary Vane Pumps
