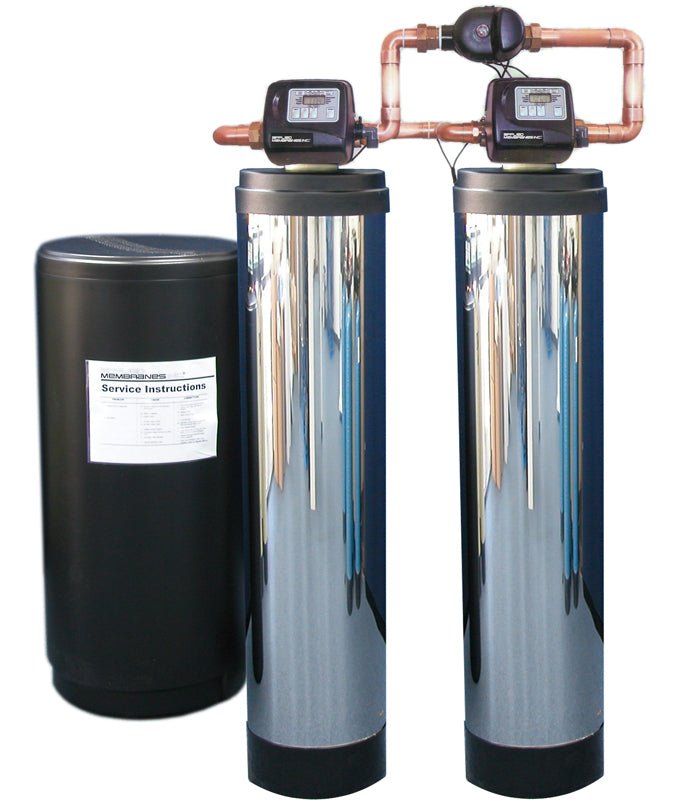

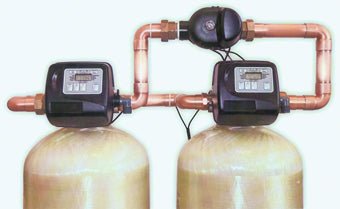

Twin softeners are ideal for situations where uninterrupted flow of soft water is a must. One resin tank is always in service, while the other tank is in standby. When the meter determines that the resin is near its capacity, it will switch the tank in standby to be in service, and the tank containing the exhausted resin will begin regeneration and wait in standby until the other tank is ready for regeneration. Hard Water contains dissolved minerals in the form of Calcium (Ca), Magnesium (Mg), and Iron (Fe). Removal of these minerals is accomplished by softening the water through an ion exchange process using a water softener. As the water flows through the mineral tank of the water softener, the dissolved minerals become attached to the resin, creating soft water. Over a period of time the resin in the water softener will become exhausted, and the water softener will regenerate using a brine solution produced from the salt in the brine tank.

Twin Alternating Water Softener Product Details

AMI Model No.*	Flow Rate** (GPM)		Backwash Flow** (GPM)	Volume of Resin (Cu. Ft.)				Resin Tank (2) (Dia”×H”)	Brine Tank (Dia”×H”)	Valve & In/Out Conn.	Approx. Shipping Wt. (lbs)
	5gpm per ft²	15gpm per ft²		Softening Resin (Only)		Total (Incl. Underbed)
	5gpm per ft²	15gpm per ft²		Per Tank	Total	Per Tank	Total
W-S744EMT	1	4	1.3	0.50	1.00	0.60	1.2	7×44	18×33	1”	160
W-S844EMT	2	5	1.7	0.60	1.20	0.70	1.4	8×44	18×33	1”	170
W-S940EMT	2	6	2.2	0.75	1.50	0.85	1.7	9×40	18×40	1”	190
W-S1054EMT	2	7	2.7	1.25	2.50	1.45	2.9	10×54	18×40	1”	265
W-S1252EMT	4	12	4.2	1.75	3.50	2.05	4.1	12×52	18×40	1”	340
W-S1354EMT	4	14	5.3	2.00	4.00	2.30	4.6	13×54	18×40	1”	415
W-S1465EMT	5	16	5.3	3.00	6.00	3.50	7.0	14×65	24×41	1”	610
W-S1665EMT	7	21	6.5	3.50	7.00	4.00	8.0	16×65	24×41	1”	705
W-S2162EMT	13	36	13	6.00	12.0	7.00	14.0	21×62	30×48	1.5”	1,185
W-S2472EMT	15	47	15	8.00	16.0	10.0	20.0	24×72	39×48	1.5”	1,760
W-S3072EMT	24	74	25	12.5	25.0	16.5	33.0	30×72	39×48	2”	2,925
W-S3672EMT	35	95	35	17.0	34.0	22.0	44.0	36×72	39×60	2”	3,760
W-S4272EMT	48	144	50	23.0	46.0	30.0	60.0	42×72	42×60	3”	5,730
W-S4872EMT	60	188	60	30.0	60.0	43.6	87.2	48×72	60×60	3”	8,520

Ordering Notes:

Softeners are available with USA or European style plugs and voltages. Please add the appropriate voltage code to the end of the model when ordering.
- 120V AC/60Hz with USA cord = US
- Example: W-S744ETS-US
- European 220V AC = EU (EU plug is removable to convert into universal 220v cord)
5 gpm per sq. ft. of media is the best design condition for filtration. For relatively clean water, you may go up to design criteria of 15 gpm per sq. ft. Backwash flow rate based on 25 psi pressure drop.

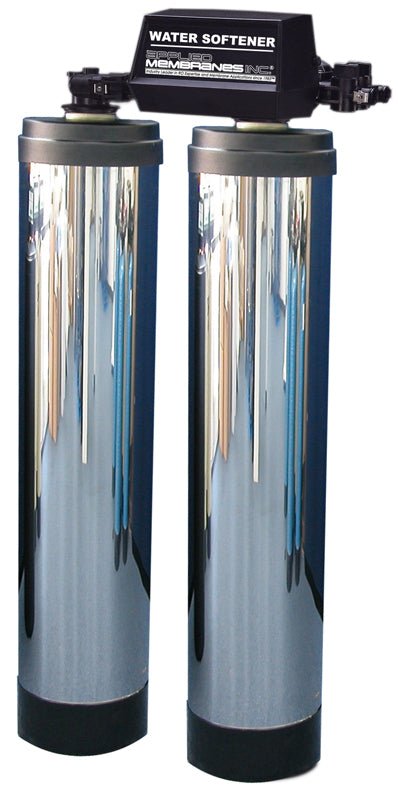

Skid mounting, control panel and custom sizes and configurations are available upon request. AMI Water Softeners are offered standard with new state of the art electronic programmable valves, but may be ordered with electromechanical Fleck valve heads upon request.
