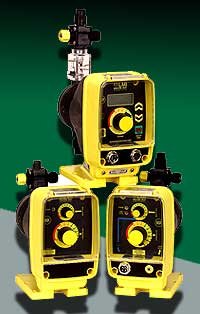

LMI Chemical Metering Pump Injection Dosing Pump LMI Chemical Metering Pumps have been an industry standard for over 20 years. The familiar yellow and black pumps have a rugged, totally enclosed, chemically resistant housing for protection in the harshest environments. Encapsulated electronics and a rigid housing and stroke bracket ensure years of precise, repeatable performance. Several control options are available for all applications and budgets.

Series AA, B & C Type “7” :  The stroke rate may be controlled manually or by a digital input. The optional Micropace Control Modules enable the user to divide or multiply a digital input or respond directly and proportionally to a 4 - 20 milliamp input. A low level input is standard.

Series AA, B, C Type “1”  is used when manual or on/off control is all that is required. Dual manual control of stroke speed and stroke length are provided.

The Series P Metering Pump is designed for more ecomomical chemical injection. Dual manual control of stroke speed and length and fixed speed versions are available for simple manual or on/off control.

LMI Chemical Metering Pump Product Details

LMI Model No.

LMI Series/Type

Pulse Mode

Flow (GPD)

Max Pressure (PSI)

Spare Parts Kit*

Min.

Max.
P121-358TI Series P Internal 0.048 5 150 RPM-352/358
P021-358TI Series P Fixed 1.512 5 150 RPM-352/358
P131-398TI Series P Internal 0.024 10 110 RPM-392/398
P031-398TI Series P Fixed 3.000 10 110 RPM-392/398
AA141-358TI Series AA Type 1 Internal 0.024 14 250 RPM-352/358
AA741-358TI Series AA Type 7 Int/Ext 0.024 14 250 RPM-352/358
AA151-398TI Series AA Type 1 Internal 0.048 24 110 RPM-392/398
AA751-398TI Series AA Type 7 Int/Ext 0.048 24 110 RPM-392/398
B121-398TI Series B Type 1 Internal 0.072 60 100 RPM-392/398
B721-398TI Series B Type 7 Int/Ext 0.072 60 100 RPM-392/398
B131-368TI Series B Type 1 Internal 0.120 108 50 RPM-362/368
B731-368TI Series B Type 7 Int/Ext 0.120 108 50 RPM-362/368
C131-318TI Series C Type 1 Internal 0.192 192 60 RPM-312/318
C731-318TI Series C Type 7 Int/Ext 0.192 192 60 RPM-312/318
C141-34 Series C Type 1 Internal 0.480 480 25 SP-U6

*Individual spare parts kits are available for each liquid end, containing 4 seal rings, 4 balls, 1 spring and 1 diaphragm.
