Hurricane Filters

Harmsco Hurricane Filter Cartridges for use in Harmsco Single-Cartridge SS Hurricane and WaterBetter Filter Housings HCP Series Hurricane Polyester Cartridges: Provides reliable sediment filtration at high flows with lower initial pressure drop. Absolute Rated Poly-Pleat Hurricane Filter Cartridges: Offer 1 Micron Absolute for Cryptosporidium and Giardia Cysts; Sediment Removal & Turbidity Reduction HCAP Series Hurricane All-Poly Cartridges are designed for most applications where absolute rated pleated filtration is needed and are constructed with 100% polypropylene materials. SureSafe Hurricane Cartridges are fabricated with the latest in Silver Zeolite technology and provide antimicrobial protection on the cartridge.

Harmsco Hurricane Filter Cartridge Product Details

HCP Series Pleated Polyester Filter Cartridges for Harmsco Hurricane Housings

  • For Sediment Removal & Turbidity Reduction
  • Cartridges are Cleanable and Reusable in Most Applications
  • Cartridges Operate in pH of 3 to 11 and Temperatures to 140°F (60°C)

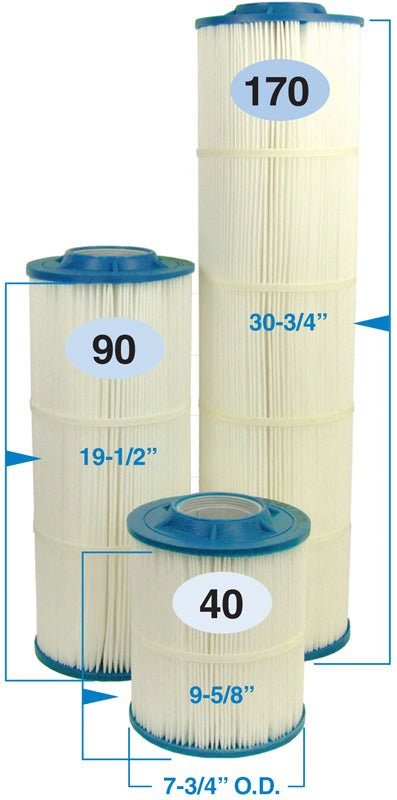

  • Come in 3 sizes to Fit Hurricane-style Housings, Choose Correct Size from Table
Model No. (Choose Filter Size) Nominal Micron Rating
Size 40 (HUR-40)
(7¾”OD×9⅝”L)		 Size 90 (HUR-90)
(7¾”OD×19½”L)		 Size 170 (HUR-170)
(7¾”OD×30¾”L)
HC/40-0.35 HC/90-0.35 HC/170-0.35

0.35 µ
HC/40-1 HC/90-1 HC/170-1

1 µ
HC/40-5 HC/90-5 HC/170-5

5 µ
HC/40-10 HC/90-10 HC/170-10

10 µ
HC/40-20 HC/90-20 HC/170-20

20 µ
HC/40-50 HC/90-50 HC/170-50

50 µ
HC/40-100 HC/90-100 HC/170-100

100 µ
HC/40-150 HC/90-150 HC/170-150

150 µ
HC/40-EZ-CLEAN HC/90-EZ-CLEAN HC/170-EZ-CLEAN

Cleaning Cartridge

Pleated Poly

Pleated Poly



All-Poly

All-Poly



Recommended Flow Rates:

  • HC/40: 35 GPM
    (Max. 50)
  • HC/90: 70 GPM
    (Max. 100)
  • HC/170: 105 GPM
    (Max. 150)
  • HC-PP-40: 17 GPM
    (Max. 25)
  • HC-PP-90: 35 GPM
    (Max. 50)
  • HC-PP-170: 60 GPM
    (Max. 100)
  • HC/40-AM: 35 GPM
    (Max. 50)
  • HC/90-AM: 70 GPM
    (Max. 100)
  • HC/170-AM: 105 GPM
    (Max. 150)
Poly-Pleat Absolute Rated Filters

  • 1 Micron Absolute for Cryptosporidium and Giardia Cysts; Sediment Removal & Turbidity Reduction
  • 140°F (60°C) Temperature Limit (Varies depending on pressure and time under load)

Model No.

Size
(For Housing)
PP-HC/40-1 HUR-40
PP-HC/90-1 HUR-90
PP-HC/170-1 HUR-170

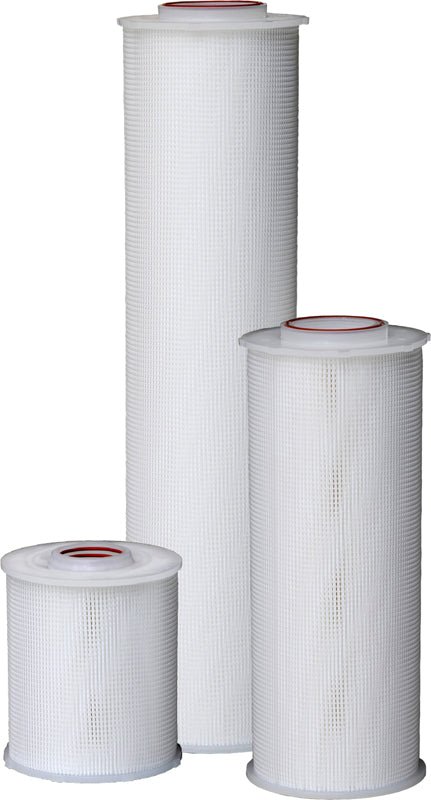

HCAP Series All-Poly High Purity 100% Polypropylene Media for Hurricane Housings

  • High Flow Absolute Rated Filters Constructed of 100% Polypropylene Media with Polypropylene End Caps and Components
Model No. (Choose Filter Size) Nominal Micron Rating
Size 40 (HUR-40)
(7¾”OD×9⅝”L)		 Size 90 (HUR-90)
(7¾”OD×19½”L)		 Size 170 (HUR-170)
(7¾”OD×30¾”L)
HC-PP-40-0.2 HC-PP-90-0.2 HC-PP-170-0.2

0.2 µ
HC-PP-40-0.45 HC-PP-90-0.45 HC-PP-170-0.45

0.45 µ
HC-PP-40-1 HC-PP-90-1 HC-PP-170-1

1 µ
HC-PP-40-5 HC-PP-90-5 HC-PP-170-5

5 µ

SureSafe™ Antimicrobial Filters for Hurricane Housings

  • Reduces Growth of Bacteria and Mold on Media
Model No. (Choose Filter Size) Nominal Micron Rating
Size 40 (HUR-40)
(7¾”OD×9⅝”L)		 Size 90 (HUR-90)
(7¾”OD×19½”L)		 Size 170 (HUR-170)
(7¾”OD×30¾”L)
HC/40-20-AM HC/90-20-AM HC/170-20-AM

20 µ
HC/40-50-AM HC/90-50-AM HC/170-50-AM

50 µ
