DOW FILMTEC reverse osmosis membranes for home drinking water treatment units are among the most reliable and consistent elements in the industry. Advanced membrane technology and automated fabrication allow Dow to produce each element to tight specifications.
DOW FILMTEC™ elements are shipped dry for convenient handling and long shelf-life.
Product Details for FilmTec Tap Water Elements
| FilmTec Product | Permeate Flow Rate | Nominal Size | Applied Pressure | Stabilized Salt Rejection | Minimum Salt Rejection
|
|
| gpd | lpd | |||||
| TW30-1812-50HR | 50 | 190 | 1.8″ × 12″ | 50 psig | 99% | 98% |
| BW60-1812-75 | 75 | 284 | 1.8″ × 12″ | 50 psig | 99% | 97% |
| TW30-1812-100HR | 100 | 379 | 1.8″ × 12″ | 50 psig | 98% | 96% |
| TW30-3012-500 | 500 | 1892 | 3.0″ × 12″ | 70 psig | 98% | 96% |
- TW30-1812-50HR replaces TW30-1812-50 which has been disonctinued by the manufacturer. TW30-1812-50HR offers higher rejection (99%) than the retired TW30-1812-150 (98%).
- BW60-1812-75 replaces TW30-1812-75, offering higher rejection as well as longer life in high hardness applications.
- TW30-1812-100HR replaces TW30-1812-100 which has been disonctinued by the manufacturer. TW30-1812-100HR offers higher rejection (98% min) than the retired TW30-1812-100.
- TW30-3012-500 uses 3″x12″ membrane housing (part number PV3012C) and does not fit standard residential housings.
- Permeate flow and salt rejection based on the following test conditions: 250 ppm softened tap water, 77°F (25°C), 15% recovery and the specified applied pressure.
- Minimum salt rejection is 96.0% (BW60-1812-75 minimum is 97.0%)
- Permeate flows for individual elements may vary +/-20%.
- Product specifications may vary slightly as improvements are implemented.
- For ease of installation, element O-rings have been pre-lubricated with glycerin.

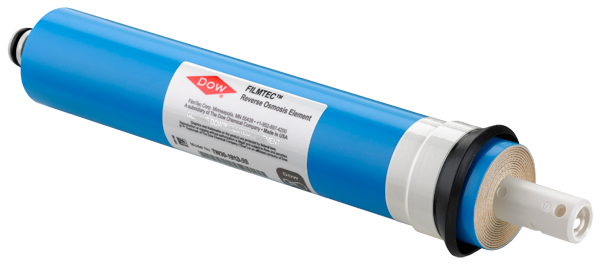

DOW FilmTec “Next Generation” Home RO Elements TW30-1812-50HR, BW60-1812-75, TW30-1812-100HR |

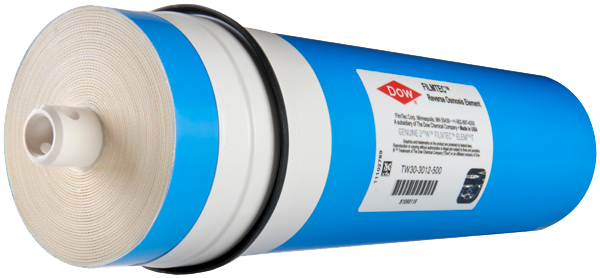

DOW FilmTec 500 GPD Membranes TW30-3012-500 |
Benefits of DOW FILMTEC Tap Water RO Membrane Elements
- Reverse Osmosis removes up to 99% of total dissolved solids.
- High flux results in greater yield (more water)
- Shipped dry for long shelf life
- FilmTec performance and quality
Features of DOW FILMTEC Home Reverse Osmosis Membrane Elements
- DOW FILMTEC Tap Water Elements for home drinking water treatment units produce 24 to 500 GPD of permeate with 90-99% stabilized salt rejection at standard test conditions
- DOW FILMTEC Tap Water Elements They are shipped dry for convenient handling and long shelf-life.
- Dow’s next generation elements are a fully compatible replacement for existing DOW FILMTEC residential RO elements.
- DOW FILMTEC TW30-1812-24, TW30-1812-36, TW30-1812-50, BW60-1812-75, TW30-1812-100 and TW30-1812-100HR elements have been tested and certified by NSF International against NSF/ANSI Standard 58 for material requirements only for safe use in drinking water applications.
- DOW FILMTEC TW30-1812-24, TW30-1812-36, TW30-1812-50, BW60-1812-75, TW30-1812-100, and TW30-1812-100HR elements are FDA – 21 CFR 177.2550; Food and Drug Administration Compliant.
 |
 |
 |
 |
Applications for DOW FILMTEC Tapwater Elements
|
|
Products Related to DOW FILMTEC Home RO Membrane Elements
- Membrane Housings for Home Reverse Osmosis Systems
- TDS Testers for testing Total Dissolved Solids in Water
Discontinued FilmTec Tap Water Elements
The below elements have been discontinued by the manufacturer and are no longer available unless noted below. The below information is for reference only.
|
FilmTec Product |
Replacement Product |
Product Data for Discontinued Models – For Reference Only. | |||||
| Permeate Flow Rate | Nominal Size | Applied Pressure | Stabilized Salt Rejection | Minimum Salt Rejection
|
|||
| gpd | lpd | ||||||
| TW30-1812-24 Limited stock available |
M-T1812A24 | 24 | 91 | 1.8″ × 12″ | 50 psig | 98% | 96% |
| TW30-1812-36 | M-T1812A36 | 36 | 136 | 1.8″ × 12″ | 50 psig | 98% | 96% |
| TW30-1812-50 | TW30-1812-50HR | 50 | 190 | 1.8″ × 12″ | 50 psig | 98% | 96% |
| TW30-1812-75 | BW60-1812-75 | 75 | 284 | 1.8″ × 12″ | 50 psig | 98% | 96% |
| TW30-1812-100 | TW30-1812-100HR | 100 | 379 | 1.8″ × 12″ | 50 psig | 96% | 90% |

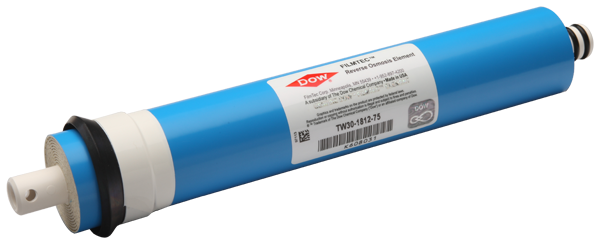

DOW FilmTec “Classic” Home RO Elements |
DOW FilmTec “Next Generation” Home RO Elements |
DOW FILMTEC Tapwater Elements Technical Information
TW30-1812-50HR Product Data Sheet
BW60-1812-75 Product Data Sheet
TW30-1812-100HR Product Data Sheet
TW30-3012-500 Product Data Sheet
FDA Compliance Letter for TW30-1812-50HR
FDA Compliance Letter for 75 GPD & 100 GPD DOW FILMTEC Home RO Membrane Elements
Discontinued DOW FilmTec Membrane Specifications For Reference
TW30-1812-24 Product Data Sheet
TW30-1812-36 Product Data Sheet
TW30-1812-50 Product Data Sheet
TW30-1812-100 Product Data Sheet
FDA Compliance Letter for DOW FILMTEC Home RO Membrane Elements
