HL High TDS (300 – 9,000 GPD)

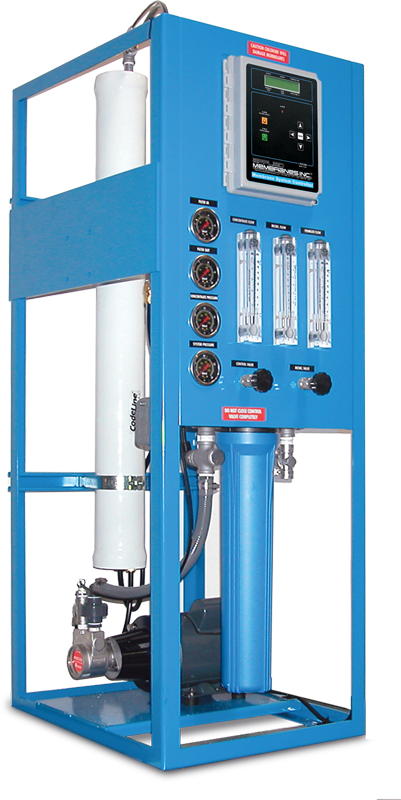

HL-Series RO Systems for High TDS Feed Water

AMI Small Commercial Reverse Osmosis Systems for High TDS Feed Water

300 to 9,000 Gallons/Day Reverse Osmosis Systems
For Feed Water TDS 1,000 to 5,000 PPM

Designed to produce low dissolved solids water from higher TDS tap or well water, these Small Commercial RO systems use high-efficiency, thin film reverse osmosis membranes and FRP membrane housings.

The RO product water is ideal for water stores, whole house use, ice makers, humidification, misting, and many other applications.

Part of the L-series family (alongside L and XL systems), these complete high-TDS RO systems use corrosion-resistant materials in all high-pressure lines and components. They operate between 200 and 250 psi, with careful design steps taken to handle brackish water's corrosive nature.

These systems are built on a powder-coated metal frame using proven, reliable components. Design improvements from years of experience help optimize membrane life and reduce fouling.

Ordering Information for HL Series High TDS Commercial RO Systems

RO System Model No.	RO System Capacity		RO Membrane Elements		Line Sizes (NPT, Inches)			RO System Dimensions (in/cm)			Approx. Shipping Weight (Lb/Kg)
RO System Model No.	GPD	m³/day	Qty.	Size (Dia.×L)	Inlet	Perm.	Conc.	Length	Depth	Height	Approx. Shipping Weight (Lb/Kg)
HL-12521A-116	300	1	1	2.5 × 21	¾	⅜	⅜	20/51	24/61	55/140	230/104
HL-125A-116	600	2	1	2.5 × 40	¾	⅜	⅜	20/51	24/61	55/140	240/109
HL-225A-116	1,200	5	2	2.5 × 40	¾	⅜	⅜	20/51	24/61	55/140	250/113
HL-14A-116	1,800	6	1	4 × 40	¾	½	½	20/51	24/61	55/140	275/125
HL-24A-116	3,000	11	2	4 × 40	¾	½	½	20/51	24/61	55/140	300/136
HL-34A-216	4,500	17	3	4 × 40	¾	½	½	20/51	32/82	55/140	325/147
HL-44A-216	6,000	23	4	4 × 40	¾	½	½	20/51	32/82	55/140	350/159
HL-54A-216	7,500	28	5	4 × 40	¾	½	½	20/51	32/82	55/140	375/170
HL-64A-216	9,000	34	6	4 × 40	¾	½	½	20/51	32/82	55/140	400/181

Notes and Voltage/ Ordering Information

All dimensions and weights are approximate.
Capacity Basis: 24 hrs/day
Systems rated at: 77°F (25°C) using 1000 to 5000 ppm sodium chloride solution operating at approx. 200-225 psi pressure.
Minimum feed pressure to RO System: 40-60 PSI. System capacity changes significantly with water temperature
Chlorine must be removed with a carbon filter prior to the RO system, if present in feed water.
Pretreatment for water hardness using a softener or antiscalant injection should be added to avoid scaling the membranes.

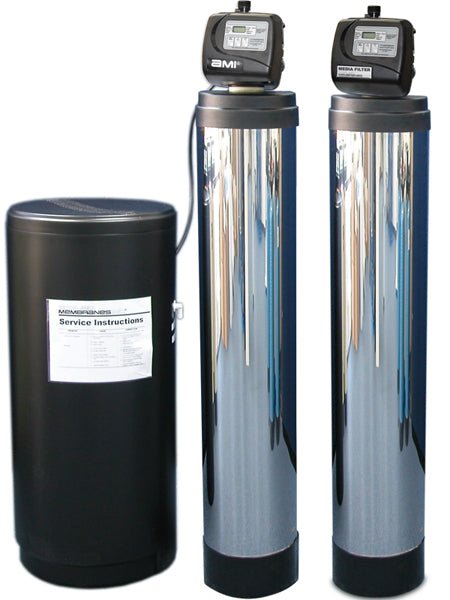

Feed water turbidity: Less than 1 NTU; Feed water silt density index (SDI): 3 maximum. If exceeded, pretreatment with media filter recommended. All pretreatment equipment and SDI test kits are available from Applied Membranes.
Voltage: Please add our voltage codes to the end of the model number when ordering.
Example: HL-12521-116 = 110v, 1 ph, 60 hz.
