Electrocoat
AMI® polyvinylidine fluoride (PVDF) spiral wound ultrafiltration (UF) membrane elements provide high performance and rejection of electrodeposition paint solids; designed for use in electrocoat applications.
AMI membrane elements are among the finest in the industry. With hundreds of thousands of membranes in operation world-wide, we offer these spiral wound ultrafiltration PVDF UF membrane elements in commercial sizes. AMI UF Membranes are 100% Quality and Performance Tested in our ISO 9001:2015 Certified Facilities. Each PVDF UF electrocoat membrane meets or exceeds our strict performance requirements before shipping. Since 1983, we have earned a reputation of delivering consistent, high quality which makes AMI Ultrafiltration Membranes the natural choice for use in water treatment systems.
| Model No. | Style
(From Below) |
Outer Wrap | Approx. Size (Dia. x Length) |
Replaces |
| M-U4028VDF-D400 | 1 | FRP Wrap | 4” × 28” | EP4028-BS01-H4; EP4033-BS01-H4; EP4040-BS02-H4, EP4040BS03-H4 V62-4030H, V62-4040AH |
| M-U4033VDF-D400 | 1 | FRP Wrap | 4” × 33” | |
| M-U7640VDF-D400 | 1 | FRP Wrap | 7.4” × 40” | EP76040-BS01-H6, EP7640-BS01-H7-HL
V62-7640H, V62-7640HS |
| M-U7638VDF-D400 | 2 | FRP Wrap | 7.4” × 38” | EP76040-BS01-H6, EP7640-BS01-H7-HL
V62-7640H, V62-7640HS |
| M-U7641VDF-D400 | 2 | FRP Wrap | 7.4” × 40.5” | |
| M-U7648VDF-D400 | 2 | FRP Wrap | 7.4” × 47.5” |

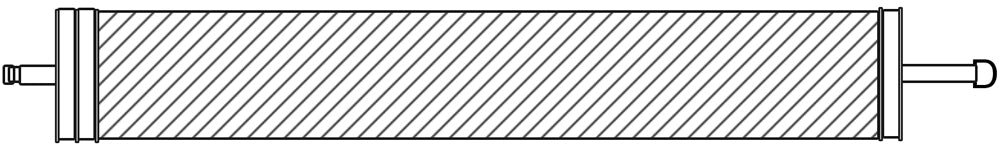

Style 1 |
Style 2 |
- Low Pressure Requirements For Reduced Operating Costs and Power Consumption
- High Flux for High Flow Rates
- Robust Materials and Construction for Long Life
- Manufactured in our ISO 9001:2015 Certified Facilities
- 100% Performance and Quality Tested
- Backed by our Experienced Technical Support Staff
- High Quality for Consistent and Reliable Performance
- Uses the Most Advanced Membrane Technology and Manufacturing Processes
- Standard Dimensions to Fit in Commonly Available Housings

Electrocoat (E-Coat)
