Dizzer XL UF
The high-performance choice. One of the key features of the dizzer® XL module is its large active membrane surface for applications requiring high treatment capacity.
The design of the dizzer® modules ensures optimum throughflow combined with top-class water purification. Potential applications include drinking water, process water, water for industrial use, swimming pools, sea water and waste water. The dizzer® modules operate entirely without the use of additional housings. This allows for significant savings to be made on piping, valves, fittings and installation engineering, which can result in investment costs being up to 20% lower than for pressure pipe technology.
Filtrate Clamp Modules for Conventional Racks
| Inge Part # |
Product Name |
Size |
Membrane Type |
Estimated Flow Rate* (gpm) |
Membrane Area |
||
|
Min. |
Max. |
sq. ft |
m² |
||||
| VK-0070 | dizzer XL 0.9 MB 38 |
9⅞” × 46½” |
Multibore® 0.9 |
5.7 |
17.1 |
410 |
38 |
| VK-0071 | dizzer XL 1.5 MB 25 |
9⅞” × 46½” |
Multibore® 1.5 |
3.8 |
11.3 |
270 |
25 |
| IN-0068 (VK-0068) | dizzer XL 0.9 MB 60 |
9⅞” × 66⅛” |
Multibore® 0.9 |
9.0 |
26.9 |
645 |
60 |
| VK-0069 | dizzer XL 1.5 MB 40 |
9⅞” × 66⅛” |
Multibore® 1.5 |
6.0 |
17.9 |
430 |
40 |

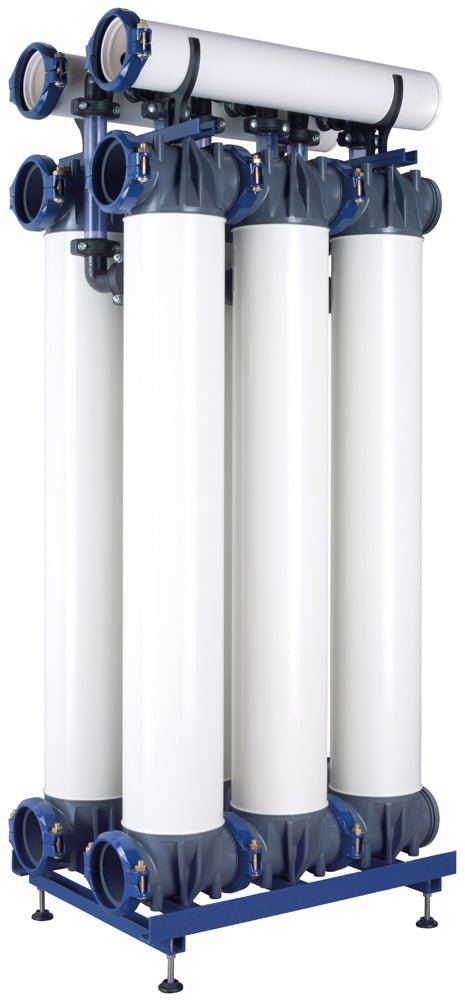

Inge UF Modules with Welded Connectors for Dizzer T-Rack 3.0S
| Part # |
Product Name |
Size ** |
Membrane Type |
Estimated Flow Rate* (gpm) |
Membrane Area |
||
|
Min. |
Max. |
sq. ft |
m² |
||||
| VK-1102 | dizzer XL 0.9 MB 60 |
9⅞” × 74” |
Multibore® 0.9 |
9.0 |
26.9 |
645 |
60 |
| VK-1103 | dizzer XL 1.5 MB 40 |
9⅞” × 74” |
Multibore® 1.5 |
6.0 |
17.9 |
430 |
40 |
 |
 |
 |
 |

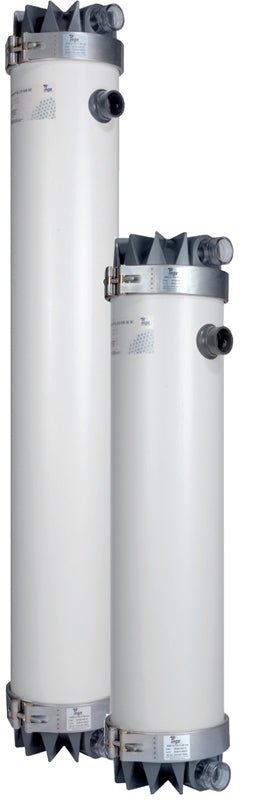

| 46″ Length UF Modules with Filtrate Clamp VK-0070, VK-0071 |
66″ Length UF Modules with Filtrate Clamp VK-0068, VK-0069 |

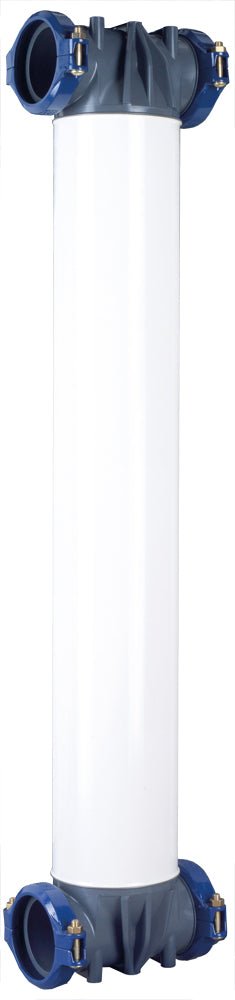

74″ Length UF Modules f or T-Rack 3.0 VK-1102, VK-1103 (shown with clamps – sold separately) |

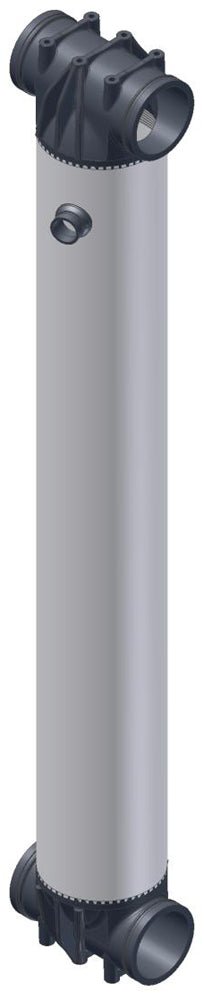

74″ Length UF Modules for T-Rack 3.0 VK-1102, VK-1103 |
Notes:
* Individual UF modules can be configured in parallel to provide increased system capacities.
* The individual UF module flow ranges depend upon the source water quality and pretreatment. Consult with ART for specific design flow rates for a specific application.
** VK-1102 and VK-1103 length shown includes T-Piece
Benefits of Inge Hollow Fiber Ultrafiltration Membrane Modules
- Space-Saving Vertical Assembly Of Modules
- Quick and Easy Installation
- Low Operating Costs
- High Operating Reliability
- Consistently High Filtration Performance
- Reliable Retention of Suspended Solids and Microorganisms
- High Chemical Resistance
- Superb Cleanability (pH 1-13)
- Excellent Antifouling Properties
Features of Inge Hollow Fiber UF Membrane Modules
- Patented Multibore® Membrane Technology
- Compact Design
- Welded Feed Connectors
- Complete Modules – No Additional Pressure Housing Required
- PVC-U (White) Housing with PVC-U (Grey) End Cap, SS Coupling & EPDM Seal
- Efficient Backwash and Simple Operation
Inge Multibore® UF Membrane 0.9
Our universal hollow fiber membrane with a 0.9 mm capillary diameter is suitable for use with a broad range of source water compositions.
- Capillaries per fibre: 7
- Inside diameter: 0.9 mm
- Outside diameter: 4.0 mm
- Pore size: approx. 0,02 μm
- Material: PESM
Multibore® UF Membrane1.5
Our heavy-duty hollow fiber membrane with a 1.5 mm capillary diameter is a good choice for situations where the solids concentration is high, such as backwash water for conventional filters or two-stage UF systems.
- Capillaries per fibre: 7
- Inside diameter: 1.5 mm
- Outside diameter: 6.0 mm
- Pore size: approx. 0,02 μm
- Material: PESM
Applications for Inge Hollow Fiber Ultrafiltration Membrane Modules
- Drinking Water
- Process Water
- Water for Industrial Use
- Swimming Pools
- Surface Water
- Groundwater
- Spring Water
- Seawater
- Waste Water
- RO Pretreatment
