Brine Tanks

Clack Media Filtration Products Brine Tanks for Regeneration
Brine Tanks for Water Softeners and Regeneration Tanks for Iron Filters

Brine tanks are used for salt regeneration for water softeners, and Potassium Permanganate feeders regenerate manganese greensand iron filters. Blow molded from durable materials and latest in plastic processing technology provide trouble-free performance.

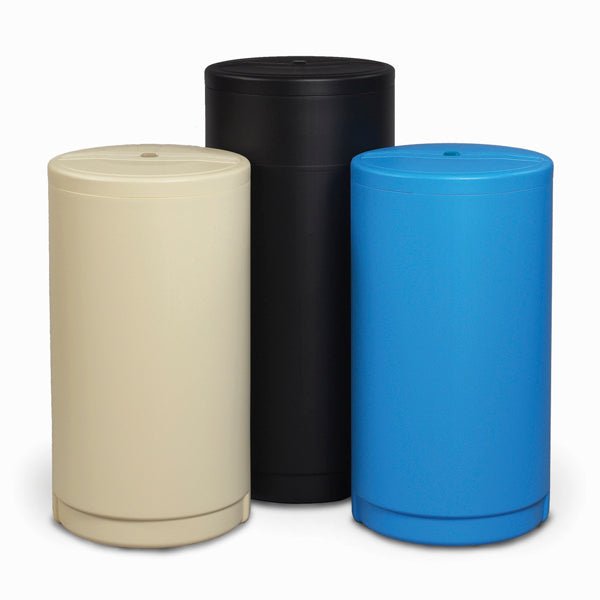

Brine Tanks for Water SoftenersBrine Tank Assemblies

  • Assembled with well, lid, brine valve, and grid plate.
  • Standard color is Black. Blue and Almond available upon request.
Model No.

Size (Dia.” × Height”)
YBT1833ASSEMBL

18”×33”
YBT1840ASSEMBL

18”×40”
YBT2441ASSEMBL

24”×41”
YBT2450ASSEMBL

24”×50”
YBT3048ASSEMBL

30”×48”
YBT3948ASSEMBL

39”×48”
YBT3960ASSEMBL

39”×60”
YBT4260ASSEMBL

42”×60”
YBT5060ASSEMBL

50”×60”
YBT6060ASSEMBL

60”×60”

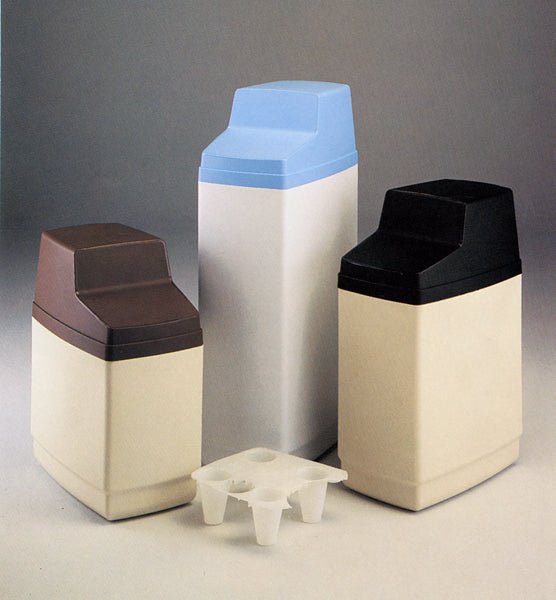

Cabinet Assemblies

  • Windsor Hi-Profile Series accommodates most control valves.
  • Assembly includes blow molded cabinet, one piece injection molded cover and salt lid.
  • Designed to accommodate mineral tanks without bases or retaining plate.
  • Features large salt port opening for easy filling.
  • Standard color is almond base with black lid. Other colors available upon request.
Model No.

For Tank Size (Dia.” × Height”)

Salt Capacity (lbs.)

Tank Size (Inches)

L

W

H
YCABIN09X18

9×18

100

22.5

13.5

27.25
YCABIN09X24

9×24

125

22.5

13.5

32.50
YCABIN10X35

10×35

225

22.5

13.5

44.00

Brine Tank Cabinets for Water Softeners

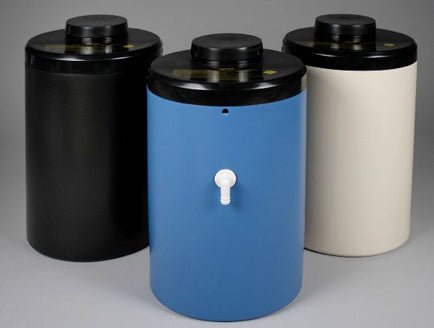

Potassium Permanganate Feeder

  • Individually packaged and tested and assembled with:  non-pressurized tank, injection molded cover (fastened with screws), float valve, polypropylene grid pads, riser, and overflow.
  • Tank composed of blow molded polyethylene with ultraviolet inhibitor.
  • Standard color is Blue.  Black and Almond available upon request.
  • Capacity:  30lb Potassium Permanganate and a liquid capacity of 5 gal
Model No.

Delivery Capacity (oz. of KMNO4

Poly Tube Elbow Size

Gallons of Solution

Float Setting

Riser Pipe Length
J7181-04

2

3/8”

¾

2 ½”

11”
J7181-03

4

3/8”

1

4”

12 ½”
J7181-11

6

3/8”

1 ½

5 5/8”

12 ½”

Potassium Permanganate Feeders for Manganese Greensand Iron Filters

Potassium Permanganate Regeneration Tank Kit



Potassium Permanganate

Model No.: X-KMNO4*

Potassium Permanganate Granules, sold in cases of four 5-lb. containers

per case only – 20lbs total.

*Hazardous
