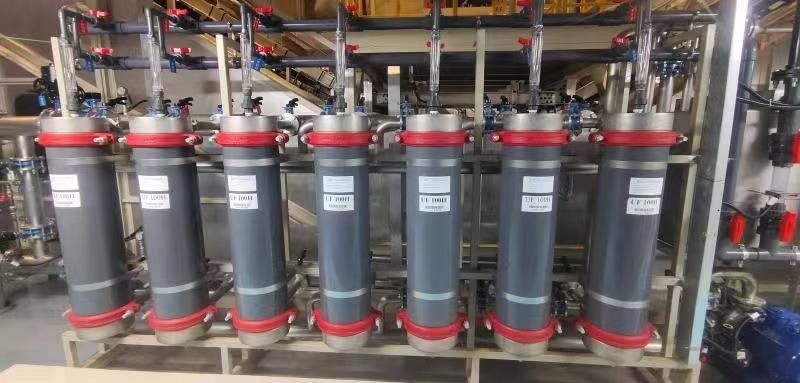

Hydrotech Ultrafiltration Membrane Elements for Electrocoat Applications
Hydrotech UF Membranes excel in the treatment and recovery of electrocoat paint. Developed and Manufactured in the USA through a partnership with All Refine, Inc., industry leaders in membrane applications since 1983.
Hydrotech UF E-Coat membranes are manufactured in the United States in our ISO 9001:2015 certified facility. Each UF membrane meets or exceeds our strict performance requirements before shipment. In the past 40 years, we have earned a reputation for providing consistently high quality, which makes Hydrotech E-Coat membranes a natural choice for Electrocoat paint treatment and recovery.
Ultrafiltration Membrane Elements for Electrocoat Applications
- PVDF Spiral Membrane
- FRP Outer Wrap
- One End Seal – ATDs both Ends
- pH Range: CIP 2-10; OP 2-10
- Cleaning Temperature: 49°C (120°F) Maximum
| Model No. | Approximate Size |
Permeate Output A/C** |
Feed Flow | ||
| lpm | gpm | lpm | gpm | ||
| UF80 PVDF500-8640H-31 | 219mm x 997mm (8.6″ x 40″) |
11 – 17 | 2.9 – 4.6 | 246 -265 | 65 – 70 |
| UF100K PVDF500-1038K-31 | 273mm x 965mm (10″ x 38″) |
16-24 | 4.2-6.3 | 100 – 117 | 378 – 443 |
| UF100H PVDF500-1040H-31 | 273mm x 1016mm (10″ x 40″) |
16-24 | 4.2-6.63 | 100 – 117 | 378 – 443 |
* For actual dimensions of elements, please refer to the product specification sheets in the literature tab.
**Anodic and Cathodic permeate output will vary depending on system design and paint bath chemistry
