4” End Clamp SS
AMI Stainless Steel Pressure Vessel Membrane Housings are designed for use in commercial reverse osmosis, nanofiltration, and ultrafiltration water treatment systems. The seamless stainless steel body is sturdy and reliable, while giving a smooth, sleek look to the system. The unique clamp-on end closures provide easier removal of the end caps for faster maintenance and membrane change-outs.
AMI 4" SS Membrane Housings are designed for direct connection to AMI/Applied Membranes and FilmTec/DOW style 4x40 elements. Lighter, safer, and more reliable than PVC membrane pressure vessels, our stainless steel membrane housings will not be affected by UV rays or sunlight, and are ideal for system pressures up to 300 PSI.
316 Stainless Steel Pressure Vessel Membrane Housing Ordering Information
- Maximum Operating Pressure: 300 PSI (20 Bar)
- Materials: 316 Stainless Steel Body, GFN End Plugs, Stainless Steel Clamps, EPDM Seals
- Vessels are sold complete with End Plugs, End Clamps, and O-Rings. Feed end product port plugs, mounting hardware, and membrane interconnectors are sold separately.
| Model No.
|
For Membrane Size (Dia. × Length) |
Qty. of Membranes per Vessel | Vessel Dimensions
|
Feed, Product & Brine Connections (FNPT) |
| PV4040SSAW-316 | 4″ × 40″ (10.2 cm × 101.6 cm) |
1 | 4.0″ × 43.5″ (10.2 cm × 110.5 cm) |
½” Female Threaded |
| PV4080SSAW-316 | 4″ × 40″ (10.2 cm × 101.6 cm) |
2 | 4.0″ × 85.0″ (10.2 cm × 215.9 cm) |
½” Female Threaded |
304 Stainless Steel Pressure Vessel Membrane Housing Ordering Information
- Maximum Operating Pressure: 300 PSI (20 Bar)
- Materials: 304 Stainless Steel Body, GFN End Plugs, Stainless Steel Clamps
- Vessels are sold complete with End Plugs, End Clamps, and O-Rings. Feed end product port plugs, mounting hardware, and membrane interconnectors are sold separately.
| Model No.
|
For Membrane Size (Dia. × Length) |
Qty. of Membranes per Vessel | Vessel Dimensions
|
Feed, Product & Brine Connections (FNPT) |
| PV4040SSAW-304 | 4″ × 40″ (10.2 cm × 101.6 cm) |
1 | 4.0″ × 43.5″ (10.2 cm × 110.5 cm) |
½” Female Threaded |
Benefits of SS Pressure Vessel Membrane Housings for RO, UF, NF, MF Systems
- Reliable and economical pressure vessel
- Designed for ease of installation and maintenance
- Ideal for pressures up to 300 PSI
- Available with 304 or 316 Stainless Steel Body, GFN End Plugs, Stainless Steel Clamps
- AMI Products have earned an industry-wide reputation for their high quality and superior performance
- 100% Quality Control Inspected in our ISO 9001:2015 certified facility in USA.
Features of SS Pressure Vessel Membrane Housings for RO, UF, NF, MF Systems
- 300 PSI (20 Bar) Maximum Operating Pressure
- End Clamp Style End Plugs
- End-Entry
- 316 Stainless Steel Body, GFN End Plugs, Stainless Steel Clamps (Available in 304SS)
- For Direct Connection to AMI/Applied Membranes and DOW/FilmTec Style 4×40 Membranes
- Easy to Install and Maintain
Stainless Steel Pressure Vessel Membrane Housings are used to house Reverse Osmosis (RO), Ultrafiltration (UF), Nanofiltration (NF), and Microfiltration (MF) membrane elements in water treatment systems for applications such as:
|
|
Spare Parts for SS Pressure Vessel Membrane Housings
| Model No. | Description | Qty. per Vessel | |
| PV-EPW40PD1212 | End Plug with O-Rings, ½”Brine x ½” Product |
2 |  |
| PV-EPW40PD3412 | End Plug with O-Rings, ¾” Brine x ½” Product |
2 | |
| PV-CL40W | End Clamp, single, with bolts & nuts | 2 | |
| 3850.005 | Feed end product port plug, ½” MNPT (not included with vessel, sold separately) | 1 | |
| PV-OR40-342 | O-Ring for End Plug – External | 4 | |
| PV-OR40-210 | O-Ring for End Plug – Internal | 2 |

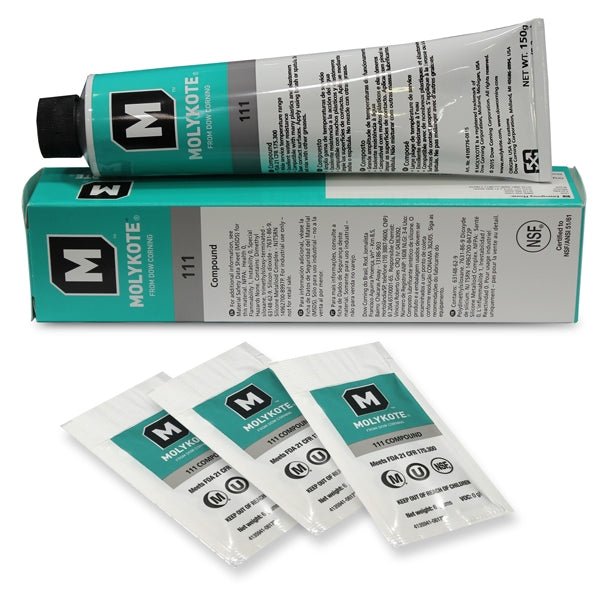

O-Ring Lubricant for Membrane Housings (Not Included)
Molykote 111 compound is the recommended o-ring lubricant for use in water filters and water treatment systems including reverse osmosis membranes & pressure vessels, and filter housings. The high gade silicone lubricant does not harm the membrane or downstream equipment typically used in reverse osmosis and water treatment systems.
| Model No. | Description | Image |
| H-C111DC | Molykote Compound 111 – 5 Ounce Tube |  |
| H-C111DC-6GM | Molykote Compound 111 – 6 Gram Pillow Pack Sold individually, or in boxes of 100 at bulk pricing |
Popular Membranes for Use with AMI 4″ SS Pressure Vessels (Not Included)
Note: Membrane max. pressures and operating conditions vary – refer to membrane specifications for data on specific models
| Membrane Type | Model |
| Thin Film RO Membranes | M-T4040A |
| Low Energy RO Membranes | M-T4040ALE |
| Extra-Low Energy RO Membranes | M-T4040AXLE |
| FRP-Wrapped RO Membranes | M-B4040A |
| LE FRP RO Membranes | M-B4040ALE |
| XLE FRP RO Membranes | M-B4040AXLE |
| Heat-Sanitizable RO Membranes | M-B4040HS |
| NF5 Nanofiltration Membranes | M-N4040A5 |
| NF9 Nanofiltration Membranes | M-N4040A9 |
| Hollow Filber UF Membranes | M-U4040HF09 |
| Polyacrylonitrile UF Membranes | M-U4040PAN |
| Polyethersulfone UF Membranes | M-U4040PES |
| Microfiltration Membranes | M-M4040PS20 |
AMI Membrane Housing Pressure Vessels Product Catalog
