2.5” PVC

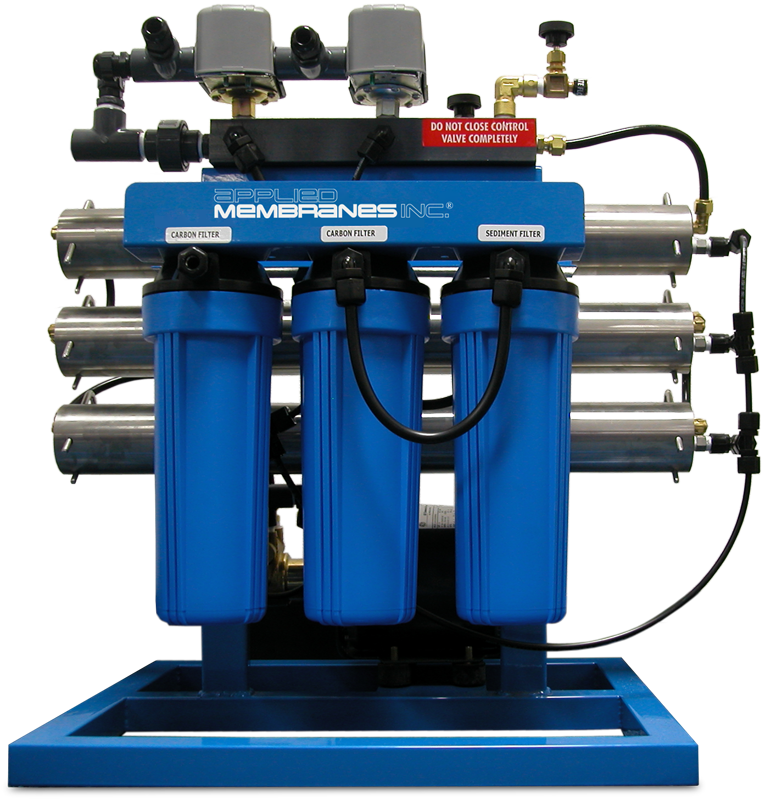

Request a Quote Ask a Question AA-Series RO Systems for Residential & Light Commercial Applications Designed to produce low dissolved solids water from tap or well water, ART AA Series RO systems are ideal for residential and light commercial use. These systems utilize high-efficiency reverse osmosis membranes in a compact, cost-effective design. Simple to install and operate, the AA-Series is perfect for restaurants, aquariums, small manufacturing, and other similar applications. When paired with a softener as pretreatment, they offer a reliable and long-lasting water purification solution. 220 to 1,000 Gallons per Day (GPD) For Feed Water TDS up to 1,000 PPM Request a Quote Ask a Question AA-Series RO Systems for Residential & Light Commercial Applications Designed to produce low dissolved solids water from tap or well water, ART AA Series RO systems are ideal for residential and light commercial use. These systems utilize high-efficiency reverse osmosis membranes in a compact, cost-effective design. Simple to install and operate, the AA-Series is perfect for restaurants, aquariums, small manufacturing, and other similar applications. When paired with a softener as pretreatment, they offer a reliable and long-lasting water purification solution. 220 to 1,000 Gallons per Day (GPD) For Feed Water TDS up to 1,000 PPM
AA Series RO Systems Ordering Information
| RO System Model No. |
RO System Capacity |
Membrane Elements |
Line Sizes |
RO System Dimensions (in/cm) |
Approx. Shipping Weight (Lb/Kg) |
|||||||
|
GPD |
m³/day |
Qty. |
Size |
Inlet |
Perm. |
Conc. |
Width |
Depth |
Height |
|||
| AA-12514 |
220 |
0.8 |
1 |
2.5”×14” |
⅜” |
¼” |
⅜” |
21/53 |
17/43 |
26/66 |
55/24 |
|
| AA-12521 |
350 |
1.3 |
1 |
2.5”×21” |
⅜” |
¼” |
⅜” |
28/71 |
17/43 |
26/66 |
60/26 |
|
| AA-22521 |
700 |
2.7 |
2 |
2.5”×21” |
⅜” |
¼” |
⅜” |
28/71 |
17/43 |
26/66 |
70/30 |
|
| AA-32521 |
1,000 |
3.8 |
3 |
2.5”×21” |
⅜” |
¼” |
⅜” |
28/71 |
17/43 |
26/66 |
75/34 |
|
Notes
- All dimensions and weights are approximate.
- System must operate with a pressurized storage tank to turn system on/off (quoted separately).
- Systems rated at 77°F (25°C) using 1000 ppm sodium chloride solution and 200 psi pressure. System capacity changes significantly with water temperature. For higher TDS, a water analysis must be supplied and could result in modifications to the system.
- Water must be pretreated by a softener or antiscalant to avoid scaling the membranes.
- Standard packaging is boxed, crating optional.
Voltage/ Ordering Information
Please add our voltage codes to the end of the RO system model number when ordering.
Example: AA-12521-116 = 110v, 1 ph, 60 hz.
| Voltage Codes: |
|
Three Phase Not Available |
|
 |
|
 |
|
|
Optional Equipment
Please note that optional equipment will increase system dimensions and/or weight.
|
|
*Recommended Minimum Options
