SY Series Small Commercial Seawater

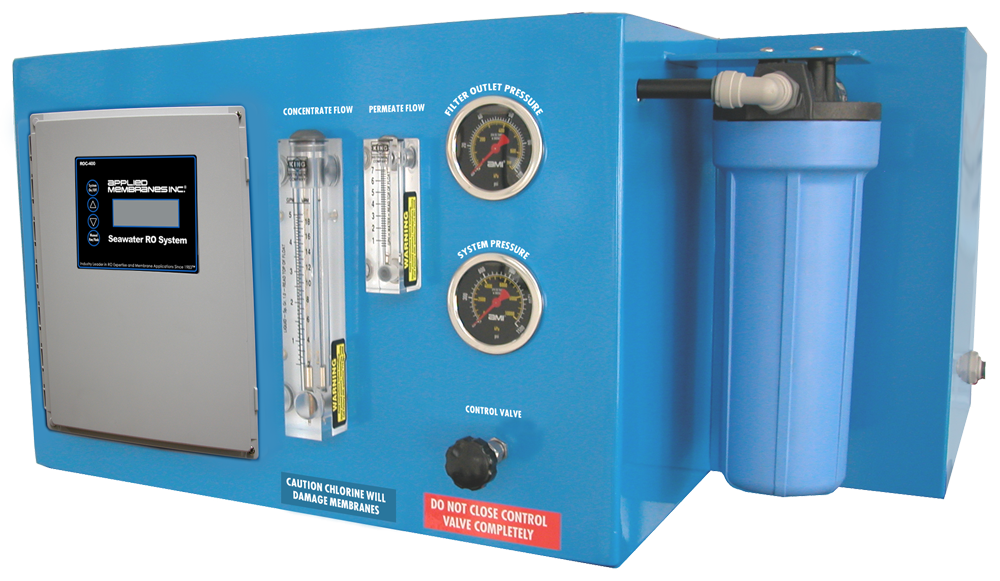

Request a Quote Ask a Question SY-Series Seawater Desalination RO Systems Our Small Commercial SY Series Seawater Desalination RO Systems convert seawater to drinking water. Their design makes them suitable for land-based applications with more extensive pre- or post-treatment. For marine applications such as ships and yachts, see our Maritime Series Watermakers available through our dealers worldwide. Available from 150 to 10,000 GPD (0.57 to 38 M 3 /D) High Quality, Robust Seawater Desalination Systems Push Button Operation and Pure Simplicity of Design Engineered with Decades of Experience Request a Quote Ask a Question SY-Series Seawater Desalination RO Systems Our Small Commercial SY Series Seawater Desalination RO Systems convert seawater to drinking water. Their design makes them suitable for land-based applications with more extensive pre- or post-treatment. For marine applications such as ships and yachts, see our Maritime Series Watermakers available through our dealers worldwide. Available from 150 to 10,000 GPD (0.57 to 38 M 3 /D) High Quality, Robust Seawater Desalination Systems Push Button Operation and Pure Simplicity of Design Engineered with Decades of Experience SY-Series Seawater Desalination RO Systems Our Small Commercial SY Series Seawater Desalination RO Systems convert seawater to drinking water. Their design makes them suitable for land-based applications with more extensive pre- or post-treatment. For marine applications such as ships and yachts, see our Maritime Series Watermakers available through our dealers worldwide. Available from 150 to 10,000 GPD (0.57 to 38 M 3 /D) High Quality, Robust Seawater Desalination Systems Push Button Operation and Pure Simplicity of Design Engineered with Decades of Experience

Series SY Watermaker Seawater RO System Ordering Information

SWRO Model No.	System Capacity		Membrane Elements		Line Sizes (NPT, Inches)			System Dimensions (in/cm)			Approx. Shipping Weight (Lb/Kg)
SWRO Model No.	GPD	m³/day	Qty.	Size (Dia.×L)	Inlet	Perm.	Conc.	Width	Depth	Height	Approx. Shipping Weight (Lb/Kg)
SY-12521	150	0.57	1	2.5″×21”	¾	⅜	⅜	36/91	19/48	17/43	110/50
SY-22521	300	1.1	2	2.5″×21”	¾	⅜	⅜	36/91	19/48	17/43	110/50
SY-12540	400	1.5	1	2.5″×40”	¾	⅜	⅜	54/137	32/81	17/43	130/60
SY-22540	800	3.0	2	2.5″×40”	¾	⅜	⅜	54/137	32/81	17/43	140/65
SY-32540	1,200	4.5	3	2.5″×40”	¾	⅜	⅜	54/137	32/81	17/43	150/70
SY-42540	1,600	6.0	4	2.5″×40”	¾	⅜	⅜	54/137	32/81	17/43	180/80
SY-24A	2,000	7.6	2	4″×40”	¾	½	¾	65/165	43/110	30/76	603/274
SY-34A	3,000	11.3	3	4″×40”	¾	½	¾	65/165	43/110	30/76	682/310
SY-44A	4,000	15.1	4	4″×40”	¾	½	¾	65/165	43/110	30/76	759/345

Series SY SWRO Notes and Voltage/Ordering Information

All dimensions and weights are approximate and subject to change. Performance Based on 32,000 ppm seawater at 77°F (25°C). Recovery in the range of 10-15%. Operating Pressure 800-1000 psi (57-71 kg/cm²)
Voltage: Please add our voltage codes to the end of the model number when ordering. Example: SY-12514-236.

Voltage Codes:
